Ball Pressure Test (°C)	70
Glow Wire Resistance (°C)	650
Lid Material	Tinted PC, UV Protection
Window Type	Transparent
Brand	IDE
Ambient Temperature Range (°C)	-25°C to 40°C
Cable Entry	Top: 12 x M20 - 6 x M25 - 2 x M32 - 1 x M40 Bottom: 12 x M20 - 6 x M25 - 2 x M32 - 1 x M40 Int.: 4 x M25 Oblong Rear: 2 x OB 25/32/25
Class of Insulation	Class II (Double Insulation)
Colour	RAL 7035
Degree of Protection	IP66
Dimensions (mm)	418W x 436H x 148D
Material	Halogen-free Plastic
Maximum Operational Voltage AC (V)	1000
Maximum Operational Voltage DC (V)	1500
Mounting Type	Surface Mount
No. of Modules	2 x 18 (36) DIN Rail
Rated Current (A)	125
Rated Impact Resistance	IK08
Standards and Approvals	IEC 62208, Directive 2014/35/EU AS/NZS 61439.3:2016 Appendix ZZ Clauses 10.101 and 10.102 AS/NZS 3000 Clause 2.10.4.2, IEC 62208 Directive 2014 35/EU Compliant
Weight (kg)	3.07

Plastic Enclosures

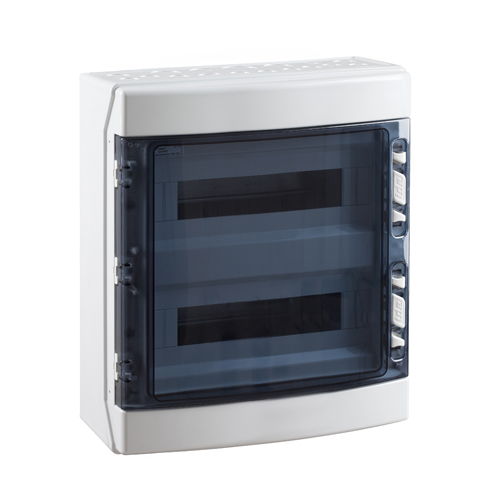

IDE LOAD CENTRE IP65 2 X 18 MOD TRANSPARENT LID RAL 7035 WITH E+N BARS LC36P2X18-65
