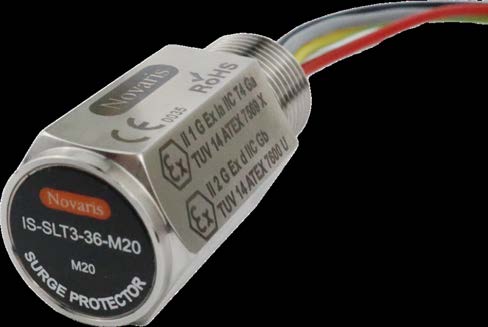

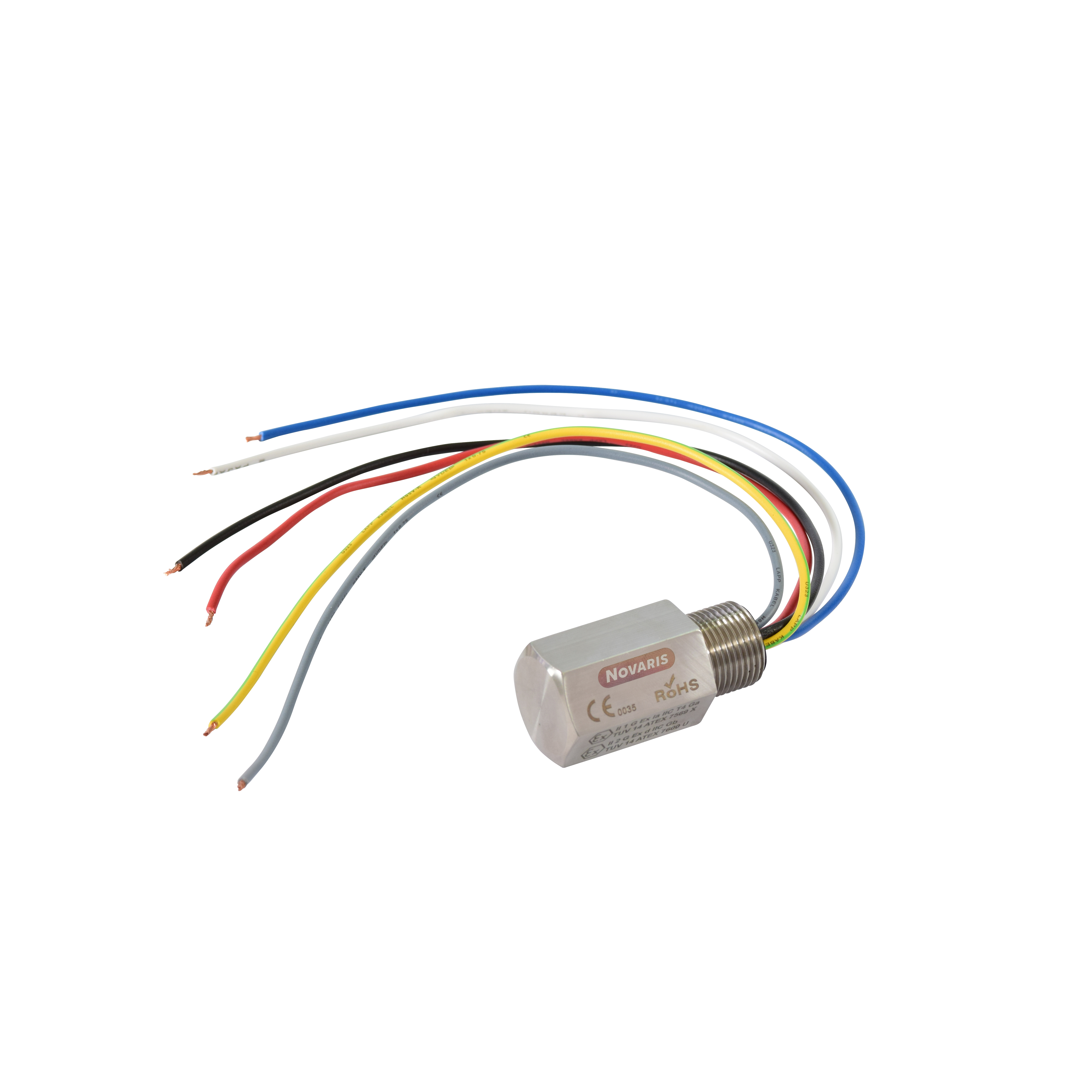

NOVARIS IS-SLT INTRINSICALLY SAFE SURGE PROTECTOR IS-SLT3-36-M20

Product Code: IS-SLT3-36-M20

The Novaris IS-SLT3-36-M20 is a surge protection device designed for intrinsically safe environments. It's certified according to IEC Ex and ATEX standards for use in explosive atmospheres. The multistage design includes a high energy gas discharge tube (GDT) and a metal-oxide varistor providing robust protection against surges.

Technical Specifications

No. of Lines 3
Voltage Protection Level (1kV/µs) - Up (kV) 0.075 (L-L), 0.35 (L-PE)
Brand NOVARIS
Connection Type Shunt
Degree of Protection IP67
Dimensions (mm) 24W x 27H x 53L
Maximum Continuous Operating Voltage MCOV AC (V) 30
Maximum Continuous Operating Voltage MCOV DC (V) 36
Maximum Discharge Current (8/20µs) - Imax (kA) 5 (per line) ,10 (common mode)
Operational Temperature Range (°C) -20 to 40
Series IS-SLT
Standards and Approvals IEC 60079-0, IEC 60079-1, IEC 60079-11, IEC 61643-21, AS/NZS 1768, UL 1449
Thread Size M20 x 1.5
Weight (g) 145
