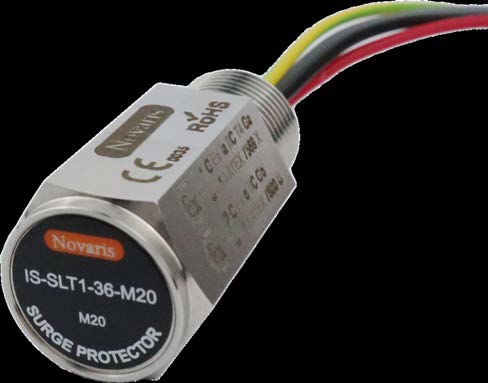

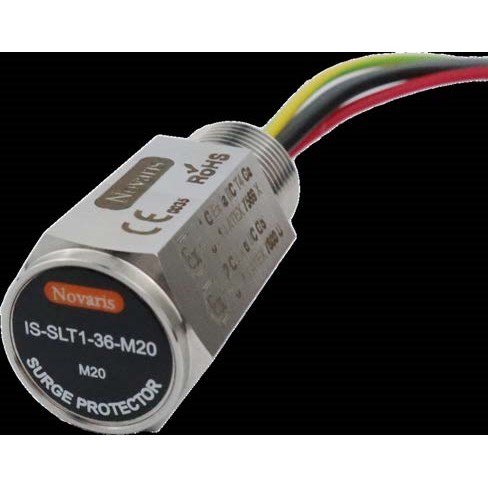

NOVARIS SURGE PROTECTOR IS-SLT1-36-M20 INTRINSICALLY SAFE IS-SLT1-36-M20

Product Code: IS-SLT1-36-M20

The Novaris IS-SLT1-36-M20 surge protection device is designed to safeguard twisted pair signal cables in intrinsically safe fields. Certified by IEC Ex and ATEX, this robust protector features a high-energy gas discharge tube and metal-oxide varistor clamping stage for superior surge suppression.

Technical Specifications

No. of Pairs 1
Voltage Protection Level (1kV/µs) - Up (kV) 0.075 (L-L), 0.35 (L-PE)
Brand NOVARIS
Connection Type Shunt
Degree of Protection IP67
Dimensions (mm) 24W x 27H x 53L
Maximum Continuous Operating Voltage MCOV AC (V) 30
Maximum Continuous Operating Voltage MCOV DC (V) 36
Maximum Discharge Current (8/20µs) - Imax (kA) 5 (per line) ,10 (common mode)
Operational Temperature Range (°C) -20 to 40
Series IS-SLT
Standards and Approvals IEC 60079-0, IEC 60079-1, IEC 60079-11, IEC 61643-21, AS/NZS 1768, UL 1449
Thread Size M20 x 1.5
Weight (g) 135
