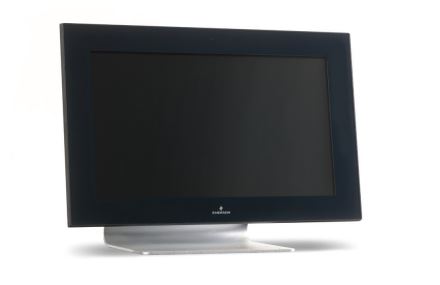

EMERSON 19" RXI - INDUSTRIAL MONITOR - EMERSON BEZEL DISPLAY PORT IN AND OUT, AUDIO IN & OUT, WIDESCREEN IC756CSW19IM

Product Code: IC756CSW19IM

Experience seamless control and visualization in your industrial environment with Emerson's 19" RXi Industrial Monitor. Designed for automation systems, this operator interface from the RXi Series boasts a crisp 1920 x 1080 Full HD resolution. Its multi-touch capabilities enhance user interaction, while the widescreen format supports landscape orientation for comprehensive viewing. Connectivity is versatile with both input and output ports, complemented by audio in/out for integrated sound solutions. The monitor also offers a range of modular screen options to suit various applications. Trust in Emerson's reliable technology to optimize your operator interfaces within any automated setup.

Technical Specifications

Interfaces HDMI (in), Display Port (in and out), USB (touch input)
Maximum Temperature (°C) 65
Minimum Temperature (°C) -20
Rated Maximum Operational Voltage DC (V) 28.8
Rated Minimum Operational Voltage DC (V) 19.2
Brand Emerson
Display Screen Size (Inch) 19
Degree of Protection IP66 (Front) / IP20 (Back)
Dimensions (mm) 500W x 315H x 65D
Mounting Type Panel
Series RXi
Standards and Approvals ATEX/IECeX
