Product Code: IC694MDL260

The Emerson RX3i AC Voltage Input module is a versatile component of automation systems, designed to cater to complex machinery, process control, motion control, and general automation applications. This chassis-based module offers flexibility with 8 to 32 points that can be configured as group or isolated inputs. It supports various logic types including positive logic, negative logic, and high-density configurations. The module is equipped with multiple network interfaces such as PROFINET, PROFIBUS DP, Modbus TCP, EGD, and CMX for seamless integration into existing networks. Suitable for mounting on panel or DIN rail setups, the RX3i series PLC ensures reliable performance in demanding industrial environments.

Current Consumption	90mA @ 5V DC
Maximum Temperature (°C)	60
Minimum Temperature (°C)	0
No. of Digital Inputs	32
No. of IO	32
Rated Maximum Operational Voltage AC (V)	132
Rated Minimum Operational Voltage AC (V)	0
Brand	Emerson
Communication Protocols	MODBUS, PROFINET, PROFIBUS
Degree of Protection	IP20
Mounting Type	On Panel / DIN Rail
No. of Input Points	32
Rated Supply Voltage AC/DC (V)	120V AC
Series	RX3i
Standards and Approvals	UL 508, equivalent to CSA C22.2 No 142M1987 standard

Programmable Logic Controllers & I/O

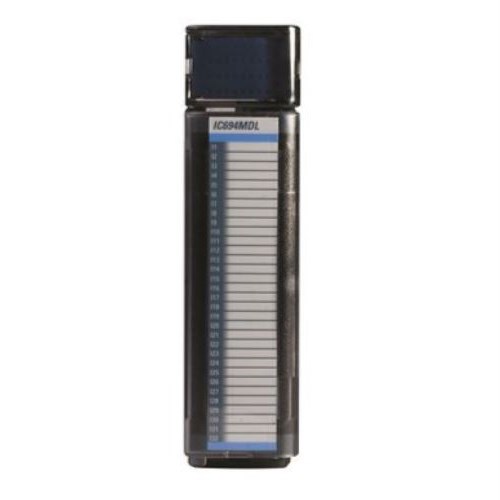

EMERSON RX3I AC VOLTAGE INPUT MODULE, 120V, 32 POINT IC694MDL260
