Product Code: IC694ALG391

The Emerson RX3i Analog Output module is a versatile component for automation systems, designed to fit within the RX3i Series of PLCs. This chassis-based unit offers flexibility with 2 to 8 channels that support both voltage and current output types. Engineered for seamless integration into various network interfaces, it includes PROFINET, PROFIBUS DP, Modbus TCP, EGD, and CMX options. Ideal for a range of applications such as complex machinery, process control, motion control, and general automation tasks, this module can be mounted on a panel or DIN rail. Its robust design ensures reliable performance in demanding industrial environments.

Current Consumption	30 mA @ 5 V DC; 215 mA 24 V DC Isolated
Maximum Nominal Output Voltage DC (V)	5
Maximum Temperature (°C)	60
Minimum Nominal Output Voltage DC (V)	0
Minimum Temperature (°C)	0
No. of Analogue Outputs	2
No. of IO	2
Nominal Output Current (A)	0.02
Brand	Emerson
Communication Protocols	MODBUS, PROFINET, PROFIBUS
Approvals	Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR
Degree of Protection	IP20
Mounting Type	On Panel / DIN Rail
Series	RX3i
Standards and Approvals	ATEX/IECeX

Programmable Logic Controllers & I/O

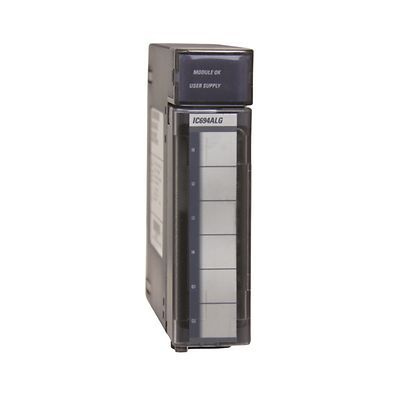

EMERSON RX3I ANALOG OUTPUT MODULE, CURRENT, 2 CHANNEL IC694ALG391

Product Code: IC694ALG391
