Input Current (mA)	Safety Input - Dual Channel (Dry Contact): 5-50 mA at 24 VDC, Safety Input - Dual Channel (Solid-State): 50 mA at 15 - 30 VDC, Safety Input - Reset: 5-50 mA at 24 VDC
Input Operation	Simultaneous or Concurrent
Maximum Temperature (°C)	55?C
Module Type	Base Controller
No. of Inputs	Safe Inputs: 26, Convertible Inputs: 8
No. of Outputs	Independently Controlled Safe Outputs: 4
Output Configuration	2 OSSD Pairs, Non-Safe Output Configuration: Up to 11 PNP
Relative Humidity	90% at 50?C
Vibration	9-150 Hz at 1g Occasional/0.5g Continuous
Brand	Emerson
Degree of Protection	IP 20
Dimensions (mm)	110H x 45W x 129D
Pollution Degree	IP20
Rated Supply Voltage DC (V)	24
Standards and Approvals	Category 4, PL e (EN ISO 13849), SIL CL 3 (IEC 62061, IEC 61508)
Terminal Type	Screw (Spring Clamp available as an accessory)

Programmable Logic Controllers & I/O

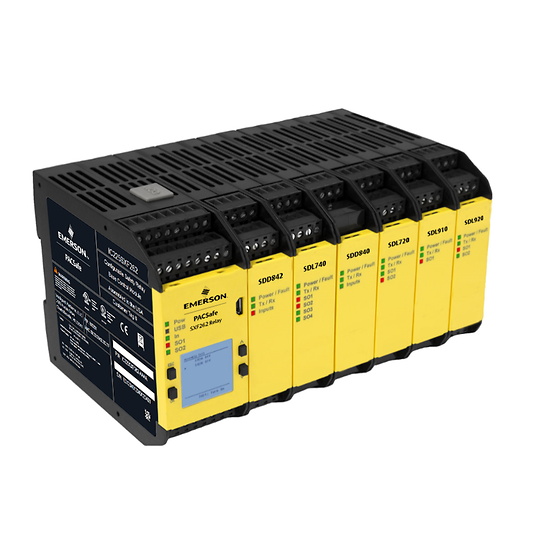

EMERSON PACSAFE PLC ETH EX EXPANDABLE WITHOUT DISPLAY 26 DIN 2 OSSD PAIR, 11 PNP AUX IC225SXE262
