Product Code: IC200PWR102

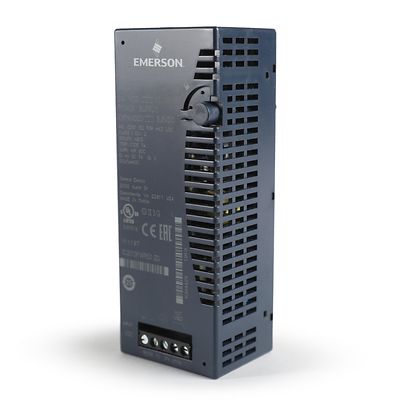

The Emerson VersaMax Power Supply is a robust component for automation systems, specifically designed for PLCs within the VersaMax series. This power supply operates on 120/240 VAC and offers an expanded output of 3.3 VDC in addition to the standard 5 VDC. It can deliver a total output current of up to 1.5 A maximum, ensuring reliable performance for your control systems. Engineered with protection against short circuits and overload, it enhances system safety and longevity.

Brand	Emerson
Maximum Nominal Output Voltage DC (V)	5
Maximum Temperature (°C)	60
Minimum Nominal Output Voltage DC (V)	3.3
Minimum Temperature (°C)	-20
Rated Maximum Operational Voltage AC (V)	240
Rated Minimum Operational Voltage AC (V)	120
Degree of Protection	IP20
Mounting Type	DIN Rail
Series	VersaMax

Programmable Logic Controllers & I/O

EMERSON VERSAMAX POWER SUPPLY WITH EXPANDED 3.3VDC 120/240VAC INPUT MODULE, IC200PWR102

Product Code: IC200PWR102

Technical Specifications
