Product Code: IC200CPUE05

The Emerson VersaMax PLC is a robust automation system designed for industrial applications requiring high I/O capacity and versatile communication options. This PLC features a CPU with 128K configuration memory, a fast 10 MBIT Ethernet port, and supports up to 2048 discrete input and output points, ensuring scalability for complex operations. It offers built-in communication protocols including SNP Slave, RTU Master and Slave, as well as Serial I/O for seamless integration into various networks. The VersaMax PLC utilizes system flash and battery-backed RAM to secure your data, while also supporting EGD (Ethernet Global Data) and SRTP (Service Request Transport Protocol) for enhanced connectivity. Part of the reliable VersaMax series, this PLC is engineered to meet the demanding needs of modern automation systems.

Boolean Execution Speed	0.8 ms/K (typical)
Data Rate (Mbps)	10 (half- or full-duplex)
EGD Exchange Limits	100 data ranges per exchange, 1400 bytes of data per exchange
Floating Point	Yes
Memory	64K bytes Maximum configurable memory, Program Storage: System flash, battery-backed RAM
No. of Ethernet Global Data (EGD) Exchanges	32
No. of SRTP Server Connections	8
Power Supply Type	5V uses 220mA, 3.3V uses 570mA
Realtime Clock	Accuracy (for timer functions)100ppm (0.01%) or +/- 9sec/day, Time of Day Clock Accuracy: 100ppm at full temperature range
Brand	Emerson
Communication	Embedded Communications: RS-232, RS-485, Ethernet
Dimensions (mm)	126 W x 128 H x 69.1 D
Series	VersaMax

Programmable Logic Controllers & I/O

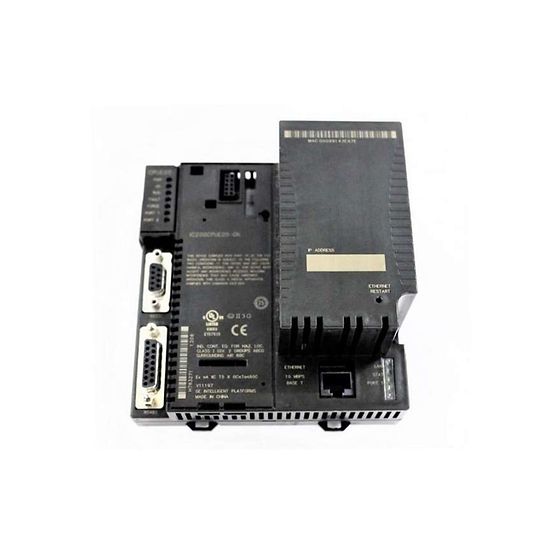

EMERSON CPU TYPE E05CPU TYPE E05 IC200CPUE05
