Product Code: HSF1-63-100-275

The Hybrid Surge Filter is a 1 phase device with a nominal voltage of 230VAC. It has a maximum continuous voltage of 480VAC (L-N) and 255VAC (N-PE). The maximum discharge current at 8/20 ms is 100kA (L-N) and 60kA (N-PE), while the nominal discharge current at the same time interval is 40kA (L-N) and 50kA (N-PE). For lightning impulse current at 10/350 ms, it can handle up to 12.5kA (L-N) and 15kA (N-PE). The voltage protection level at 3kA, 8/20ms is less than 650V(L-N), and for In, it is less than 1300V(N-PE). The maximum load current supported by this filter is IL 63A. It can be connected in series and mounted on an IP20 DIN rail.

Maximum Load Current - I? (A)	63
Voltage Protection Level (3kA 8/20µs) - Up (kV)	<0.65 (L-N)
Brand	NOVARIS
Degree of Protection	IP20
Dimensions (mm)	141H x 90W x 69D
Lightning Impulse Current (10/350 µs) - Iimp (kA)	12.5 (L-N), 15 (N-PE)
Maximum Continuous Operating Voltage MCOV AC (V)	480 (L-N), 255 (N-PE)
Maximum Discharge Current (8/20µs) - Imax (kA)	100 (L-N), 60 (N-PE)
Mounting Type	DIN rail
No. of Phases	1
No. of Poles	1P+N+PE
Nominal Discharge Current (8/20µs) - In (kA)	40 (L-N), 50 (N-PE)
Nominal Voltage AC (V)	230
Operational Temperature Range (°C)	-40 to 70
Series	HSF
Standards and Approvals	IEC 61643-11, AS/NZS 1768, UL 1449, IEEE 62.41.2
Voltage Protection Level - Up (kV)	<1.3 (N-PE)

Lightning & Surge Protection

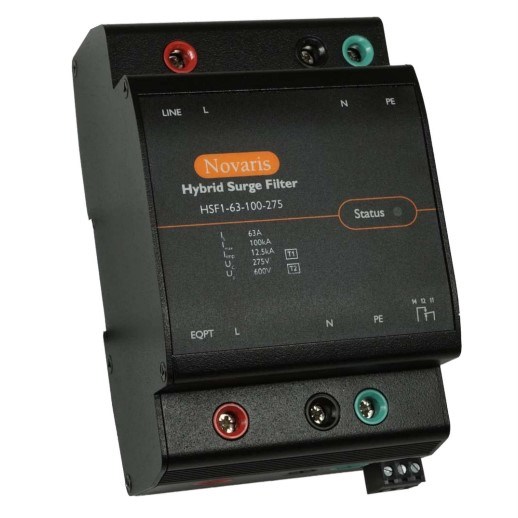

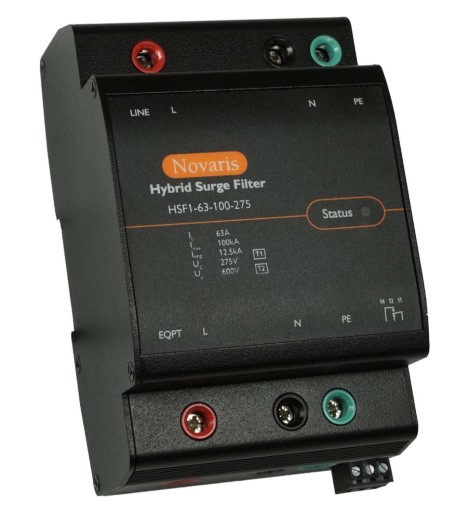

NOVARIS HYBRID SURGE FILTER HSF1-63-100-275
