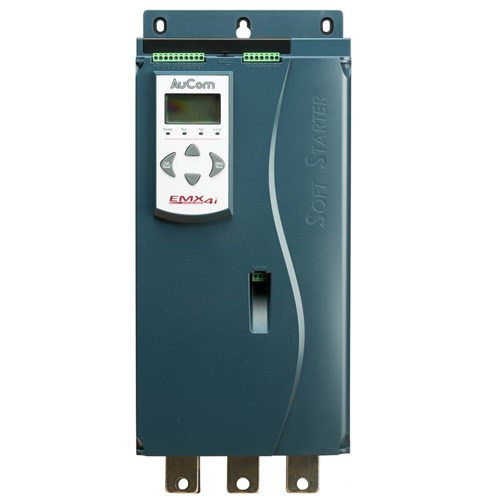

AuCom EMX4i0184BV5C2H SOFT STARTER EMX4i 184A 200-525VAC, CONTROL 24VAC/DC

Product Code: EMX4i0184BV5C2H

The EMX4i is an advanced smart soft starter designed for in-line installation. It features an internal bypass and has a frame size of S2 with an IP00 rating. The current ratings vary depending on the load, with light at 184A, medium at 143A, heavy at 115A, and severe at 90A. The supply voltage range is between 200-525V AC, while the control voltage is 24V AC/DC. This soft starter offers a wide range of motor control features including constant current and current ramp start, coast to stop and TVR stop, XLR-8 adaptive control starting/stopping, DC brake, soft brake, kickstart, soft trip, jog (forward and reverse), and inside delta (6 wire) control. It also provides motor protection for motor thermistor, current imbalance, under/over current, phase sequence, phase loss, and power loss. For simplified management, the EMX4i includes emergency run mode and run simulation with real-time performance graphs. It also has SCR fail power through operation and daily on/off scheduling capabilities. To enhance functionality, the EMX4i can support an I/O smart card or a communication expansion card with a remote keypad connector. Alternatively, it can be used with a dedicated keypad connector card. Additionally, it offers a USB port for easy parameter upload and download along with data logging capabilities.

Technical Specifications

Brand AuCom
Degree of Protection IP00
Dimensions (mm) 216W x 495H x 243D
Operational Temperature Range (°C) -10 to +60
Rated Control Supply Voltage AC/DC (V) 24
Rated Current - Heavy Duty (A) 115
Rated Current - Light Duty (A) 184
Rated Current - Medium Duty (A) 143
Rated Current - Severe Duty (A) 90
Rated Supply Voltage AC (V) 200 - 525
Size of Frame S2
