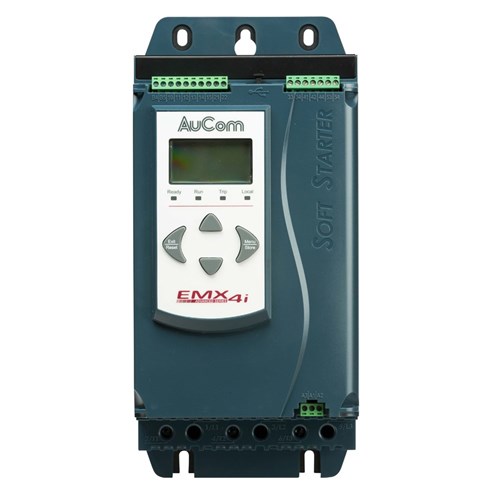

AuCom EMX4i0024BV5C1H SOFT STARTER EMX4i 24A 200-525VAC, CONTROL 110/240VAC

The EMX4i is an advanced smart soft starter designed for in-line installation. It features internal bypass and has a frame size of S1 with an IP20 rating. The current ratings vary depending on the load, with light at 24A, medium at 20A, heavy at 16A, and severe at 12A. The supply voltage range for the EMX4i is between 200V and 525V AC, while the control voltage is either 110V or 240V AC. Motor control capabilities include constant current and current ramp start, coast to stop and TVR stop, XLR-8 adaptive control starting/stopping, DC brake, soft brake, kickstart, soft trip, jog (forward and reverse), and inside delta (6 wire) control. The soft starter provides motor protection against various issues such as motor thermistor faults, current imbalance, under/over current conditions, phase sequence errors, phase loss, and power loss. For simplified management, the EMX4i offers emergency run mode and run simulation with real-time performance graphs. It also has SCR fail power through operation and daily on/off scheduling options. To enhance functionality further, the EMX4i can support an I/O smart card or a communication expansion card with a remote keypad connector. Alternatively, it can be used with a dedicated keypad connector card. Additionally, it includes a USB port for easy parameter upload and download along with data logging capabilities.
