Product Code: E65LM24T250

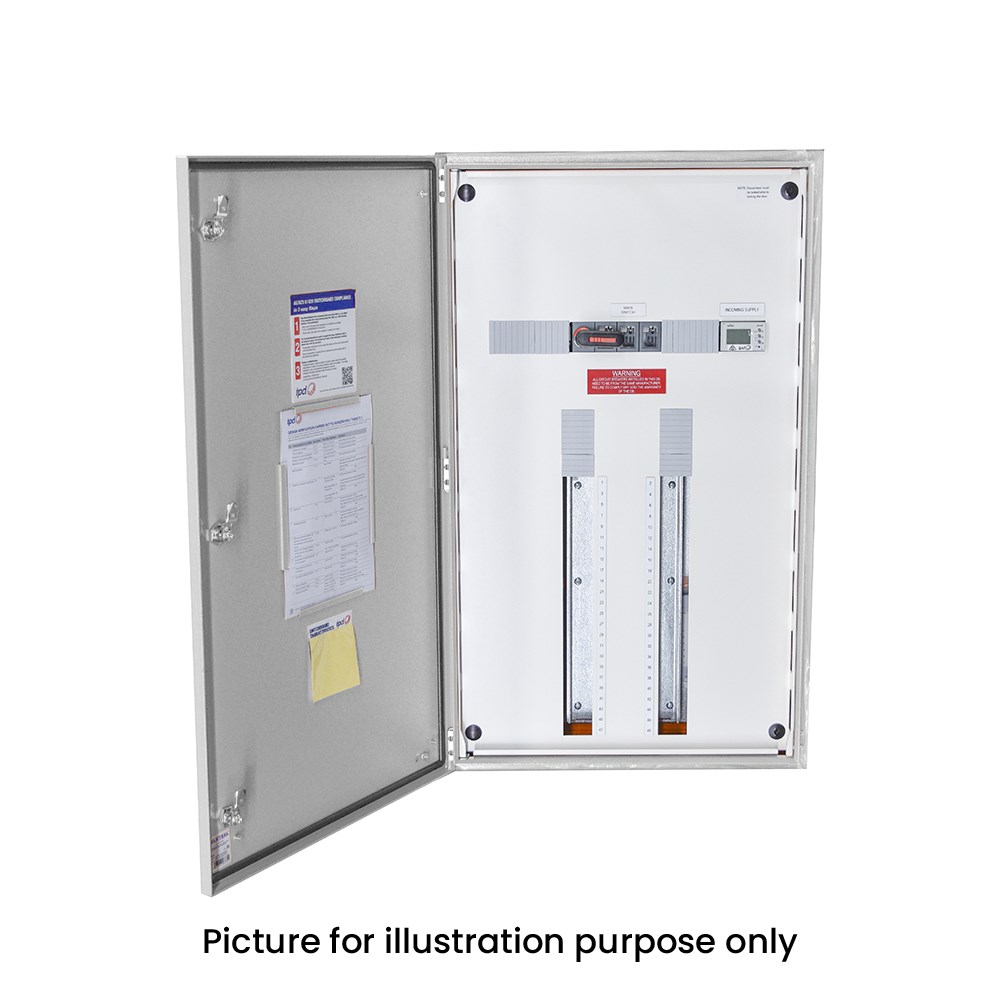

Evolution distribution boards are specifically designed for the System pro M S200 range protection devices. These boards are constructed using 1.6mm Mild Steel in RAL7035 grey colour. They have an IP65 rating, making them suitable for outdoor applications. The enclosure of the distribution board includes various components such as the OT250 LBS, Diris A10 kWh meter, Full Gland Plate Top & Bottom, 24P encapsulated chassis, metal locks, and a hinged escutcheon. The size of the board is 800H x 600W x 200Dmm.

No. of CT Meters	1
Brand	IPD
Colour	Grey, RAL7035
Degree of Protection	IP65
Dimensions (mm)	800H x 600W x 200D
DIN Accessory Spaces	11
Material	Mild Steel
No. of Locks	2
No. of Poles	24P
Rated Current of Main Switch (A)	250
Type of Main Switch	LBS

Evolution Distribution Boards

IPD E65LM24T250 DB 24P IP65 GREY WITH SINGLE CT METER

Product Code: E65LM24T250
