Product Code: E65LM1818T250

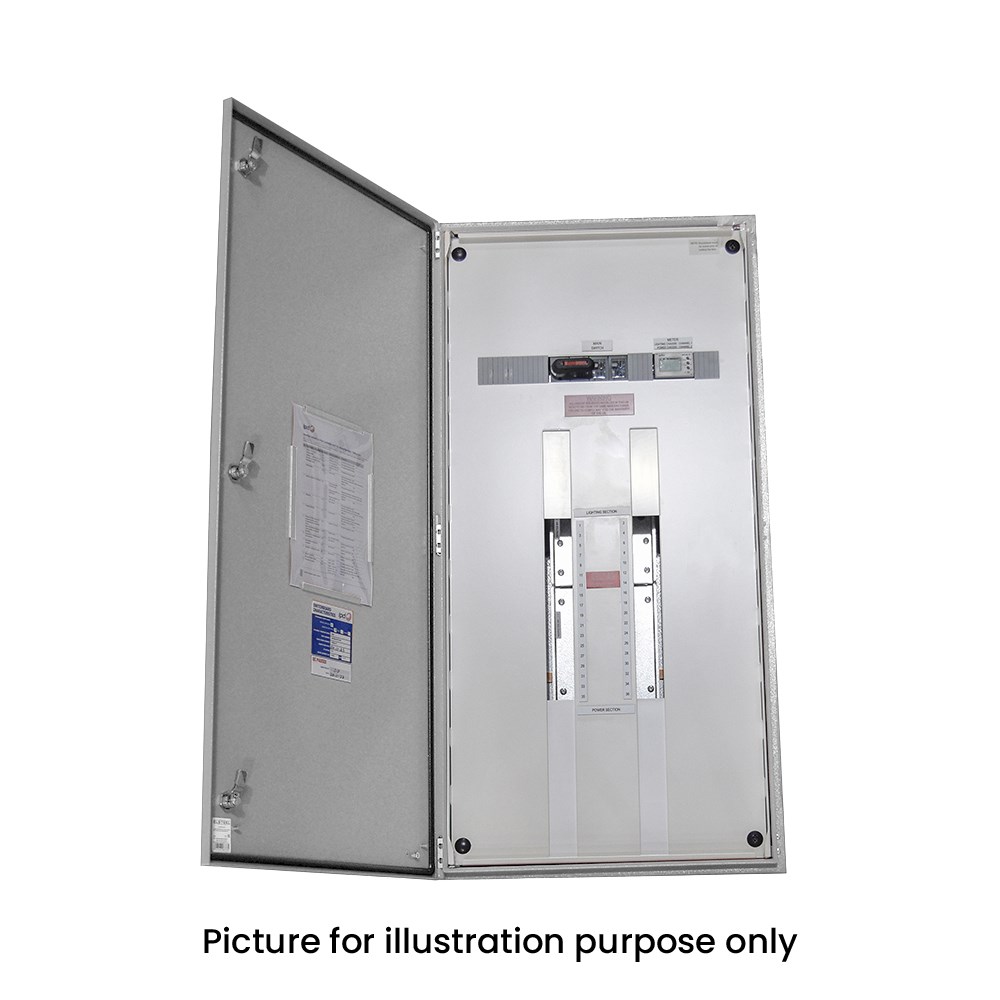

Evolution distribution boards are specifically designed for System pro M S200 range protection devices. These boards are constructed using 1.6mm Mild Steel in RAL7035 grey colour. They have an IP43 rating, making them suitable for outdoor applications. The enclosure of the distribution board includes OT250 LBS, Full Gland Plate Top & Bottom, and metal locks with a hinged escutcheon. The chassis is split into two sections, each encapsulating 18L/18P and equipped with two Diris A10 kWh meters. The dimensions of the board are 1200H x 600W x 200Dmm.

No. of CT Meters	2
Brand	IPD
Colour	Grey, RAL7035
Degree of Protection	IP65
Dimensions (mm)	1200H x 600W x 200D
DIN Accessory Spaces	7
Material	Mild Steel
No. of Locks	3
No. of Poles	18P (Dual Light), 18P (Power CT)
Rated Current of Main Switch (A)	250
Type of Main Switch	LBS

Evolution Distribution Boards

IPD E65LM1818T250 DB 18L/18P GREY+DUAL LIGHT, P.CT METERS

Product Code: E65LM1818T250
