Evolution Distribution Boards

IPD E65L48CT250 COMPACT DB 48P IP65 GREY + OT250 LBS

Product Code: E65L48CT250

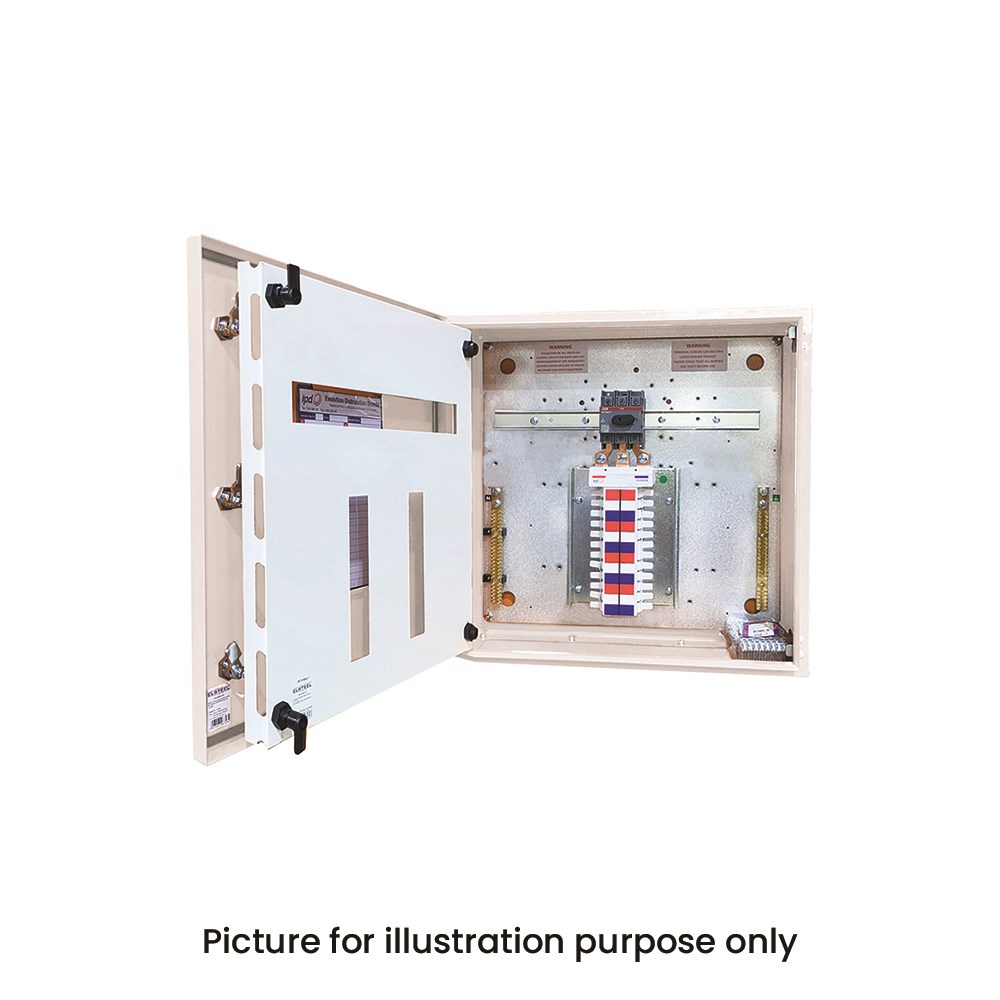

Evolution distribution boards are compact and designed specifically for the System pro M S200 range protection devices. They are made from 1.6mm mild steel in RAL7035 grey colour. These boards have an IP65 rating, making them suitable for indoor applications. The enclosure includes features such as OT250 LBS, a full gland plate on the top and bottom, a 48P encapsulated chassis, metal locks, and a hinged escutcheon. The size of the board is 800H x 600W x 200Dmm.

Technical Specifications

Brand IPD
Colour Grey, RAL7035
Degree of Protection IP65
Dimensions (mm) 800H x 600W x 200D
DIN Accessory Spaces 15
Material Mild Steel
No. of Locks 2
No. of Poles 48P
Rated Current of Main Switch (A) 250
Type of Main Switch LBS
