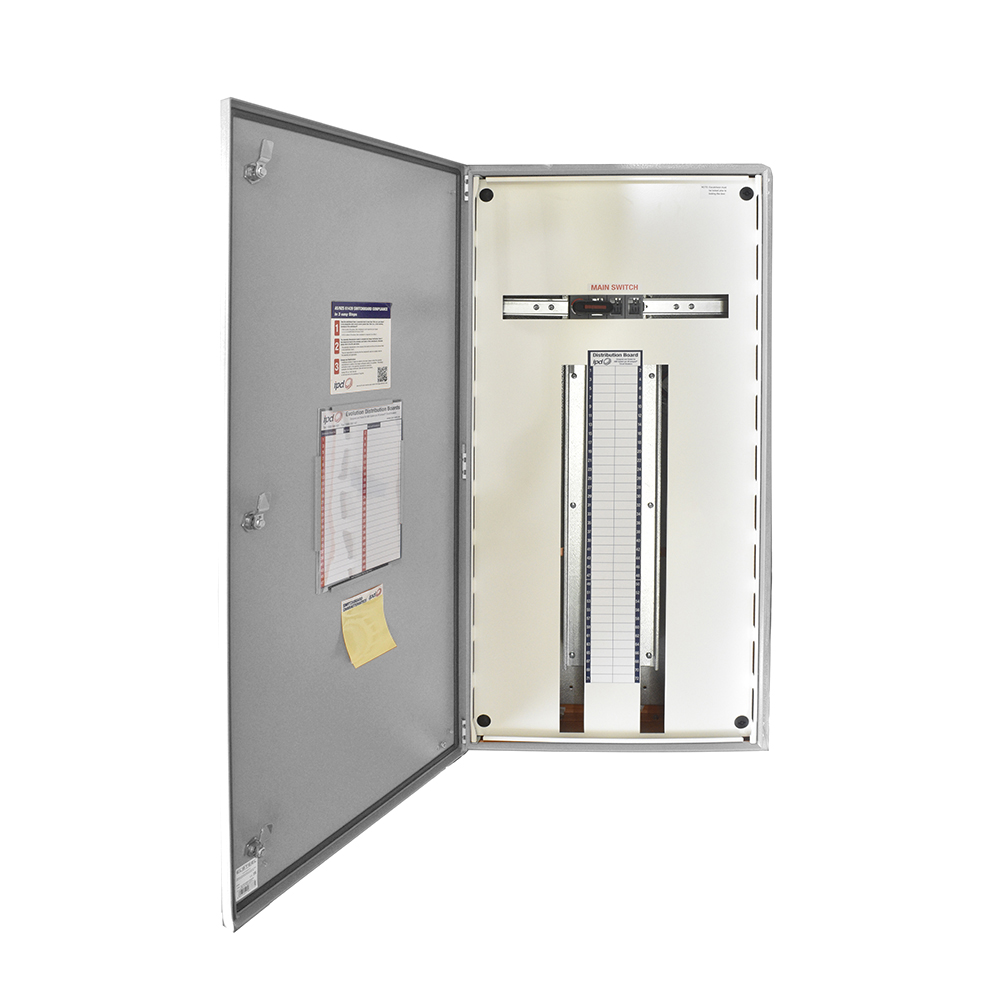

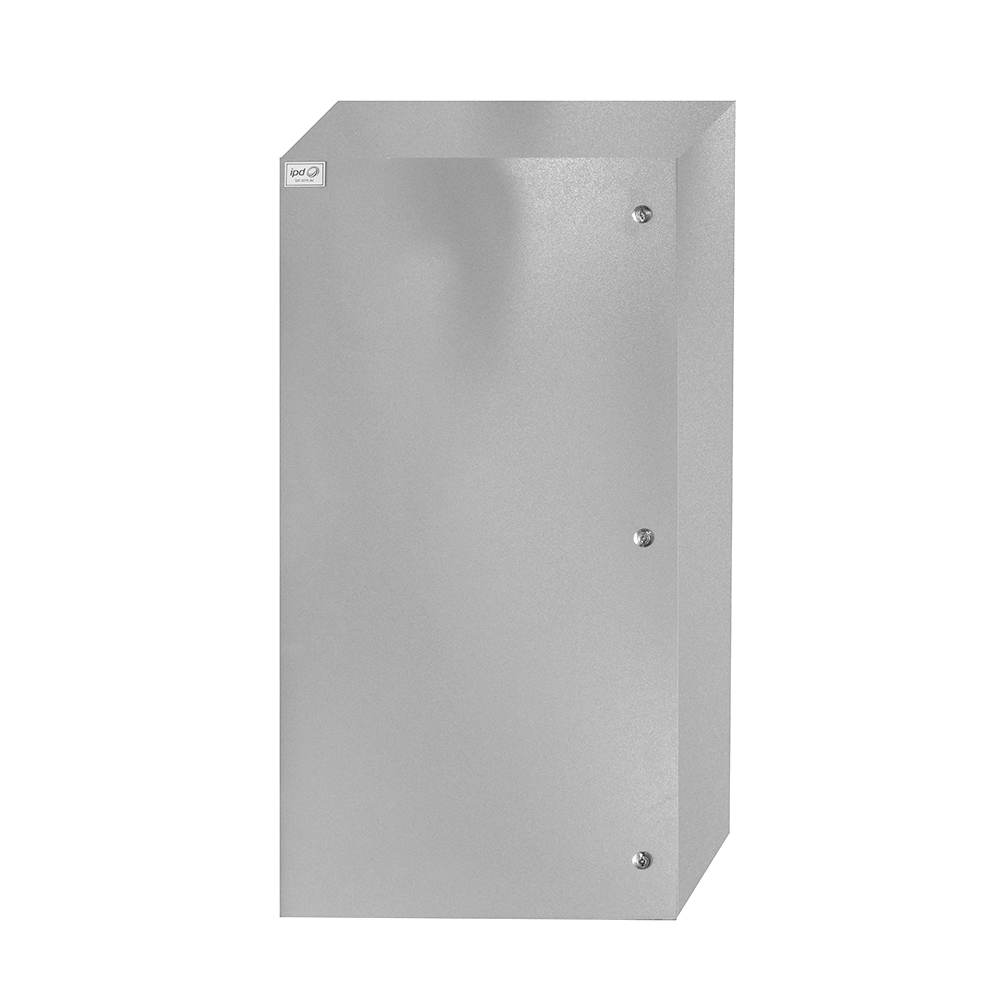

IPD E65L36T250 Distribution Board 36-P IP65 RAL 7035 Grey Mild Steel LBS 250A 800mm H x 600mm W x 200mm D

Product Code: E65L36T250

  • Rated for 250A current capacity
  • Features 36 poles for diverse applications
  • IP65 protection against dust and water
  • Durable mild steel construction
  • Compact dimensions: 600x800x200 mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Distribution Board
Brand IPD
Colour RAL 7035 Light Grey
Degree of Protection IP65
Depth 200 mm
DIN Accessory Spaces 15
Height 800 mm
Main Switch Type LBS
Material Mild Steel
Number of Locks 2
Number of Poles 36
Rated Current 250 A
Width 600 mm

Description

<p>The Standard - E65 is a robust and reliable solution designed to meet the demanding needs of industrial and commercial environments. This product offers a rated current of 250 A, making it suitable for applications that require substantial power handling capabilities. With 36 poles, it provides extensive connection options, ensuring versatility in complex electrical systems.</p><p>At the core of this unit is its main switch type, LBS (Load Break Switch), which offers effective circuit isolation and protection. The LBS design ensures safe operation during maintenance or emergency situations by allowing circuits to be de-energized without risk.</p><p>One of the standout features of this product is its IP65 degree of protection. This rating signifies that the enclosure is dust-tight and protected against water jets from any direction. Such a level of protection makes it ideal for harsh environments where exposure to dust or water might otherwise compromise less robust equipment.</p><p>Constructed from durable mild steel, the enclosure promises longevity and resilience against physical impacts. Finished in RAL 7035 light grey, it not only blends seamlessly into various settings but also adds an aesthetic appeal while adhering to industry-standard colour schemes.</p><p>The dimensions are practical for installation in diverse locations: with a width of 600 mm, height of 800 mm, and depth of 200 mm, this product balances space efficiency with accessibility. These dimensions make it easy to integrate into existing setups without requiring significant alterations or accommodations.</p><p>Overall, the Standard - E65 provides an optimal balance between functionality and durability. Its combination of high current capacity, extensive pole availability, superior protection rating, and sturdy construction makes it an excellent choice for professionals seeking reliability in their electrical installations.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
