Product Code: E65AM3648T250

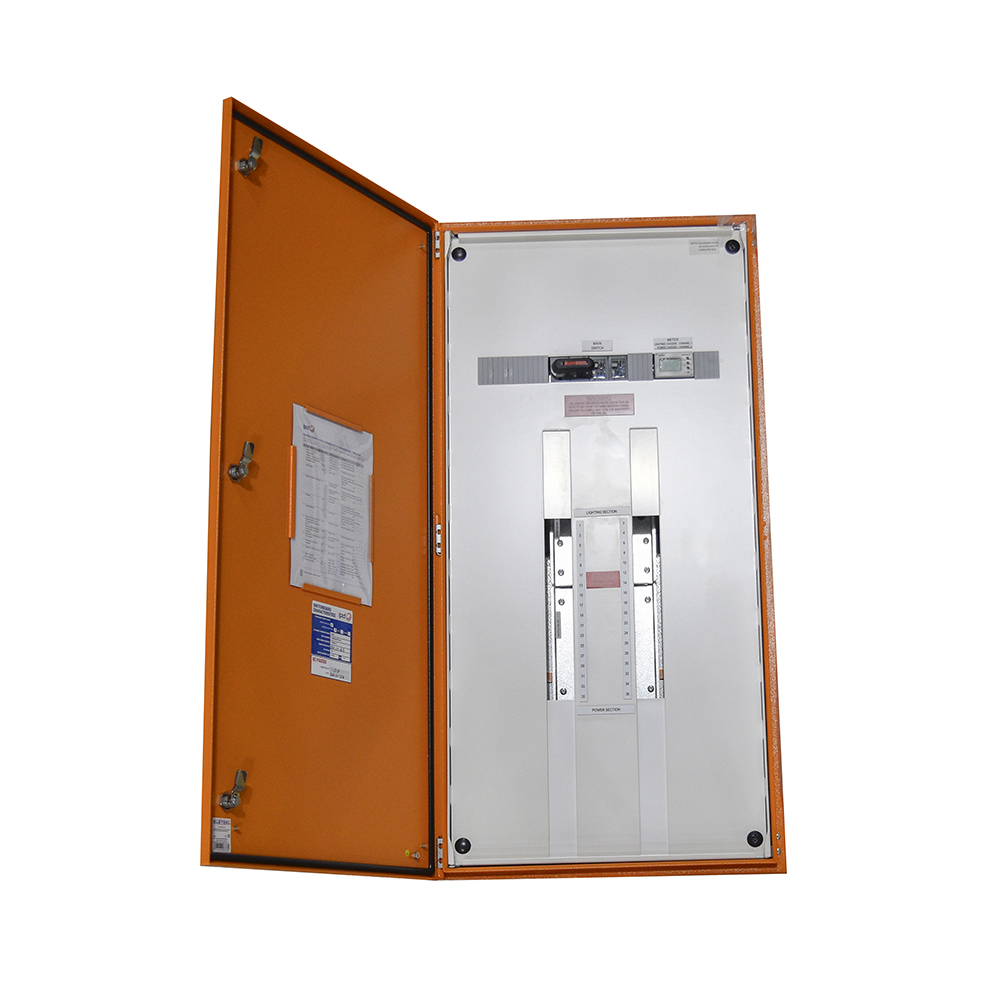

Evolution distribution boards are specifically designed to accommodate System pro M S200 range protection devices. These boards are constructed using 1.6mm Mild Steel in a vibrant RAL2000 orange colour. With an IP43 rating, they are suitable for outdoor applications. The enclosure of the distribution board includes features such as OT250 LBS, Full Gland Plate Top & Bottom, and metal locks with a hinged escutcheon. The chassis is split into two sections, each encapsulating a Diris A10 kWh meter. The overall dimensions of the board are 2000H x 600W x 200Dmm.

No. of CT Meters	2
Brand	IPD
Colour	Orange, RAL2000
Degree of Protection	IP65
Dimensions (mm)	2000H x 600W x 200D
DIN Accessory Spaces	31
Material	Mild Steel
No. of Locks	3
No. of Poles	36P (Dual Light), 48P (Power CT)
Rated Current of Main Switch (A)	250
Type of Main Switch	LBS

Evolution Distribution Boards

IPD E65AM3648T250 DB 36L/48P ORANGE+DUAL LIGHT, P.CT METERS

Product Code: E65AM3648T250
