Product Code: E65AM1818T250

Evolution distribution boards are specifically designed for System pro M S200 range protection devices. These boards are constructed using 1.6mm Mild Steel in a vibrant RAL2000 orange colour. They have an IP43 rating, making them suitable for outdoor applications. The enclosure of the distribution board includes features such as OT250 LBS, Full Gland Plate Top & Bottom, metal locks, and a hinged escutcheon. The chassis is split into two sections, with each section encapsulating an 18L/18P configuration and housing a Diris A10 kWh meter. The dimensions of the board are 1200H x 600W x 200Dmm.

No. of CT Meters	2
Brand	IPD
Colour	Orange, RAL2000
Degree of Protection	IP65
Dimensions (mm)	1200H x 600W x 200D
DIN Accessory Spaces	7
Material	Mild Steel
No. of Locks	3
No. of Poles	18P (Dual Light), 18P (Power CT)
Rated Current of Main Switch (A)	250
Type of Main Switch	LBS

Evolution Distribution Boards

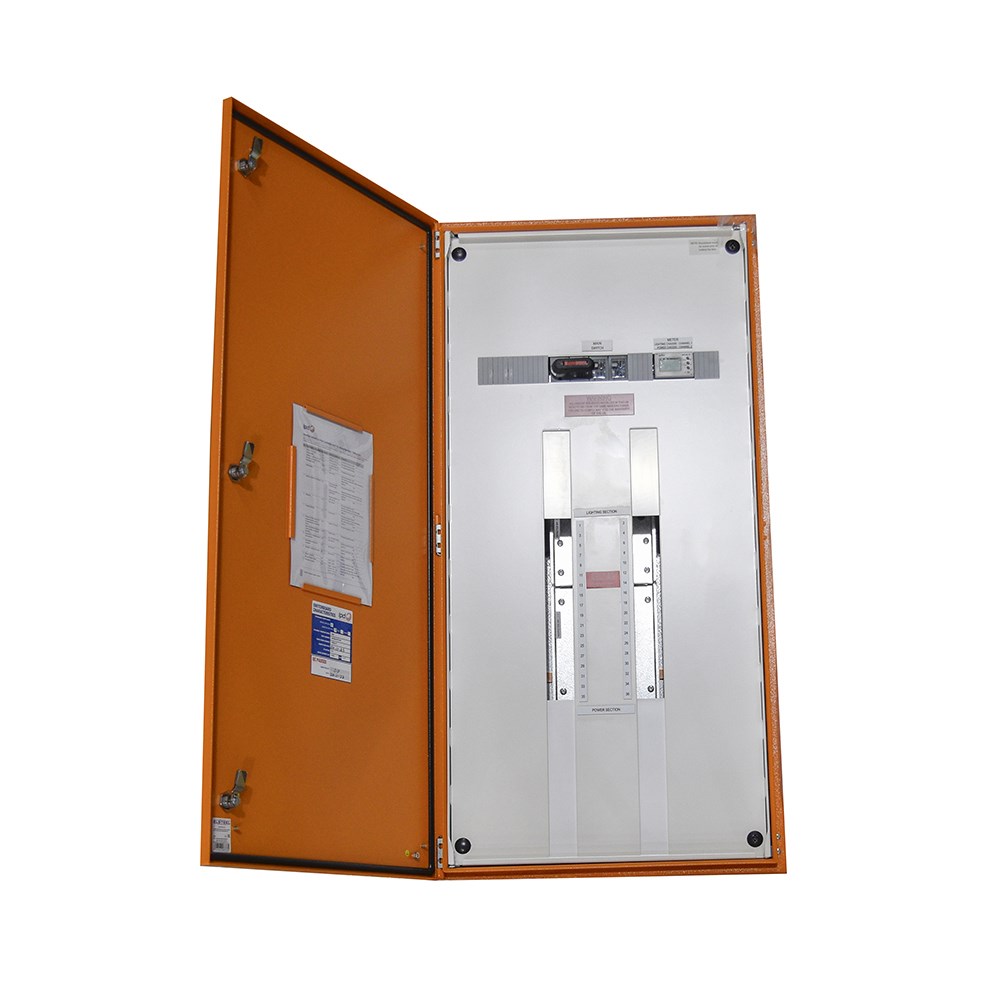

IPD E65AM1818T250 DB 18L/18P ORANGE+DUAL LIGHT, P.CT METERS

Product Code: E65AM1818T250
