Product Code: E65A4P24/60T250

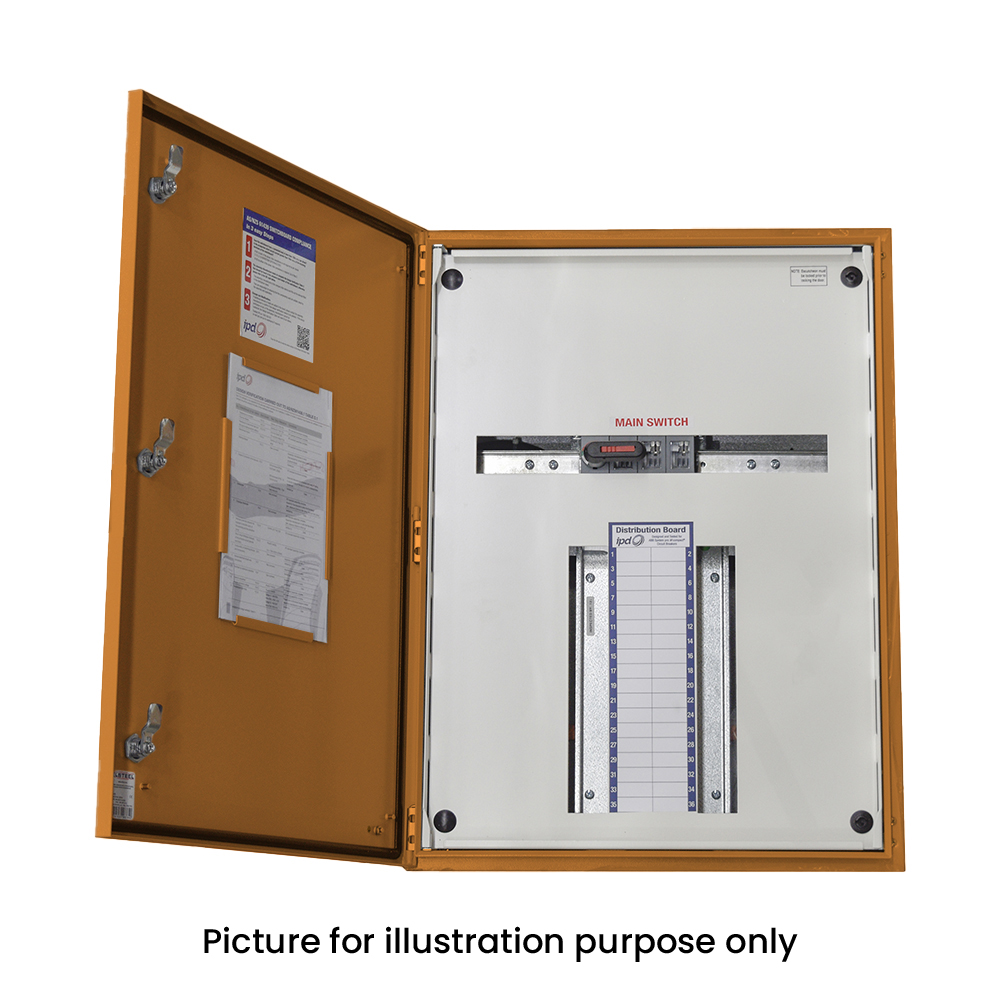

Evolution distribution boards are specifically designed to accommodate DS203NC range protection devices. These boards are constructed using 1.6mm Mild Steel in a vibrant RAL2000 orange colour. With an IP65 rating, they are suitable for outdoor applications. The enclosure features a 250A main switch, as well as a full gland plate on both the top and bottom. It also includes a 24P RWBN + 60P RWB chassis, metal locks, and a hinged escutcheon for added security and convenience. The dimensions of the board are 1200H x 600W x 200Dmm.

Brand	IPD
Colour	Orange, RAL2000
Degree of Protection	IP65
Dimensions (mm)	1200H x 600W x 200D
DIN Accessory Spaces	15
Material	Mild Steel
No. of Locks	3
No. of Poles	24P (RWBN), 60P (RWB)
Rated Current of Main Switch (A)	250
Type of Main Switch	LBS

Evolution Distribution Boards

IPD E65A4P24/60T250 DB 24/60P IP65 ORANGE 250A SUIT DS203NC

Product Code: E65A4P24/60T250
