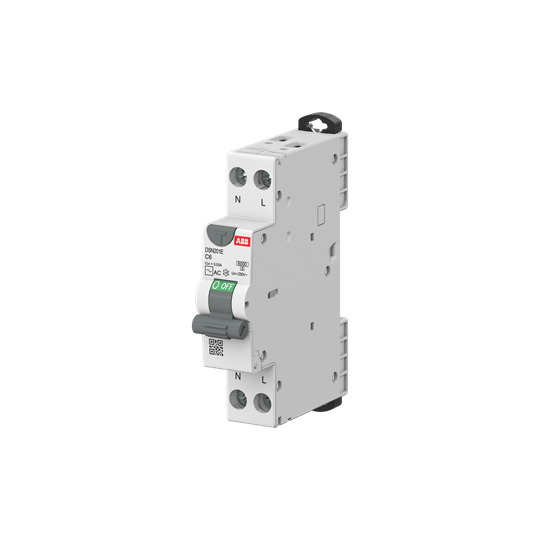

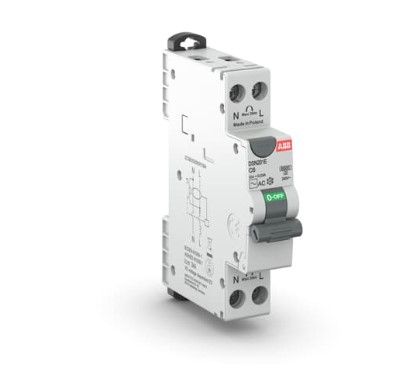

<p>When selecting an RCBO (Residual Current Circuit Breaker with Overcurrent protection) for your industrial or commercial needs, it&#39;s essential to consider a product that meets both safety and performance standards. This particular RCBO is designed with precision to ensure reliability in various applications.</p><p>Rated at 6 A, this device supports a rated voltage of 240 V and can withstand impulse voltages up to 4 kV. With a rated insulation voltage of 500 V, it provides robust protection against electrical faults. The breaking capacity stands at 6 kA, ensuring that it can handle significant fault currents without failure.</p><p>This RCBO is constructed as a single pole plus neutral (1P+N) unit, offering comprehensive circuit protection. Its power loss is minimal at just 1.8 W, making it energy efficient for prolonged use. It conforms to several international standards including IEC/EN 61009-1 and AS/NZS 61009.1, assuring quality compliance.</p><p>The compact dimensions—17.8 mm width, 86 mm height, and 70 mm depth—make it suitable for installations where space is limited. Weighing only 0.113 kg enhances its ease of installation on DIN rails.</p><p>Designed for durability with an electrical lifespan of up to 10,000 cycles and operational in ambient temperatures ranging from -25&#176;C to +55&#176;C ensures adaptability across diverse environments.</p><p>The device features an IP20 degree of protection against solid objects larger than 12 mm but should be installed where there are no water exposure risks due to its pollution degree IP2 rating.</p><p>For safe connections, the terminal type uses screw clamps supporting cable cross-sections from solid core cables (1-25 sq-mm) to multi-wired cables (1-16 sq-mm). Wire stripping length is set at an optimal length of 13 mm for secure connections.</p><p>This RCBO features Type A residual current detection suitable for detecting AC and pulsating DC residual currents while providing instantaneous operating characteristics crucial in preventing electric shock hazards promptly.</p><p>Additionally equipped with contact position indication: red signifies &#39;ON&#39; while green indicates &#39;OFF&#39;, allowing easy status monitoring at a glance.</p><p>It operates efficiently within the overvoltage category III environment which typically includes equipment connected directly to the main distribution board like fixed installations inside buildings or factory settings requiring high levels of surge resistance capability.</p><p>Housing comes in RAL7035 grey color—a standard choice aligning well aesthetically within most electrical panels or switchboards setups—and offers flexibility through arbitrary power supply connection methods enhancing installation versatility further still!</p><p>Overall this product combines technical finesse alongside practical functionality meeting stringent industry demands seamlessly!</p>
