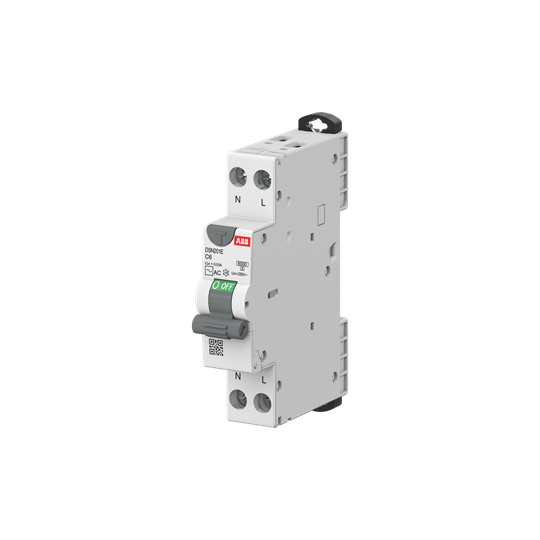

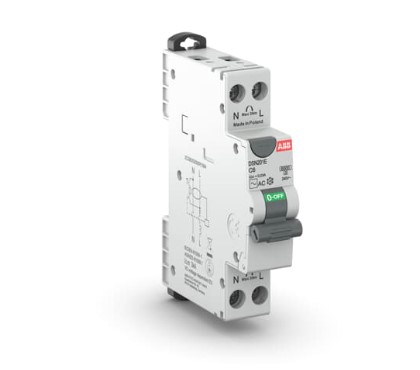

<p>When it comes to selecting a reliable and efficient RCBO for industrial and commercial applications, this model offers a solid choice with its comprehensive specifications. Designed to ensure safety and performance, this RCBO is engineered for those who need dependable circuit protection.</p><p>This RCBO operates at a rated current of 25 A and supports a rated voltage of 240 V, making it suitable for various electrical setups. Its breaking capacity stands at 6 kA, ensuring robust protection against short circuits. The device&#39;s rated impulse withstand voltage is 4 kV, while the rated insulation voltage is set at 500 V, providing assurance in high-demand environments.</p><p>The unit features a single-pole plus neutral (1P+N) configuration with an IP20 degree of protection. This ensures that the product can be used safely in protected environments where accidental contact with live parts must be avoided. The screw clamp terminal type allows for secure connections, supporting cable cross-sections ranging from 1-25 sq-mm for solid core wires and up to 16 sq-mm for multi-wired cables.</p><p>Measuring just 17.8 mm in width, the compact design makes installation on DIN rails straightforward without sacrificing valuable panel space. Additionally, its height of 86 mm and depth of 70 mm make it easy to integrate into existing systems.</p><p>Conforming to standards such as IEC/EN 61009-1, IEC 61009-2-2, and AS/NZS 61009.1 ensures compliance with international safety regulations—an essential factor when considering equipment reliability.</p><p>The RCBO has an electrical durability rating of up to 10,000 cycles which speaks volumes about its longevity under regular use conditions. It is equipped with Type A residual current detection capabilities suitable for detecting AC currents as well as pulsating DC currents—ideal for modern installations where electronic devices are prevalent.</p><p>With an ambient temperature operating range from -25&#176;C to +55&#176;C and overvoltage category III classification, this device performs reliably across varied environmental conditions typical within Australia’s diverse climate zones.</p><p>The housing color coded RAL7035 grey blends seamlessly into most industrial settings while offering functional benefits like ease-of-identification during maintenance checks or upgrades thanks largely due its clear contact position indication: red signifies &#39;ON&#39;, green indicates &#39;OFF&#39;.</p><p>In terms of ease-of-use features: wire stripping length required stands at just13mm; power supply connections remain flexible allowing arbitrary configurations based upon specific site needs; dielectric test voltages reach up towards2 .5kV further reinforcing overall integrity throughout operation phases whether subjecting busbars(10sq-mm), rigid(1–25sq-mm), or flexible wires(1–16sq-mm).</p><p>Overall weighing only0 .113kg yet packing substantial protective measures alongside instantaneous operating characteristics —this particular RCBO model remains highly effective choice meeting stringent technical demands across sectors reliant upon precision-engineered solutions tailored specifically around safeguarding both assets personnel alike all whilst adhering closely industry benchmarks regulatory frameworks globally recognized today!</p>
