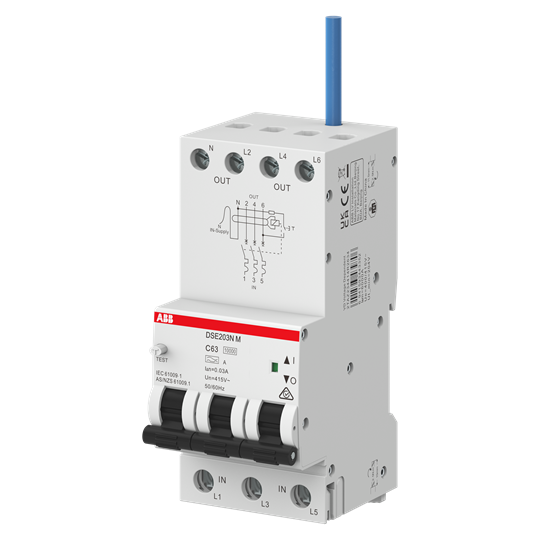

<p>This RCBO (Residual Current Circuit Breaker with Overcurrent protection) is a robust and reliable choice for industrial and commercial electrical systems. Designed to ensure safety and efficiency, it combines the functions of an MCB (Miniature Circuit Breaker) and an RCD (Residual Current Device), providing comprehensive protection against overloads, short circuits, and earth faults.</p><p>Rated at 16 A with a voltage capacity of 400/415 VAC, this device is suitable for various applications within its specified range. It boasts a rated impulse withstand voltage of 4 kV and an insulation voltage of 500 V, ensuring resilience against transient overvoltages.</p><p>The RCBO&#39;s compact design features dimensions of 53.4 mm in width, 117.5 mm in height, and a depth of 71.6 mm, making it easy to integrate into existing systems without requiring excessive space. Weighing just 0.549 kg, it maintains ease of handling during installation or maintenance.</p><p>With a degree of protection rated at IP20, this unit is designed for indoor use where dust ingress will not affect its performance but should not be exposed to moisture-laden environments unless adequately housed. The product adheres to rigorous standards including IEC 61009-1, IEC 61009-2-2, and AS/NZS 61009-1 certifications.</p><p>The RCBO offers impressive electrical durability with up to 10,000 cycles before needing replacement or servicing. Its short circuit capacity stands at an industry-standard level of 6 kA while supporting cable cross-sections ranging from solid-core wires between 1-25 sq-mm to multi-wired cables between 1-16 sq-mm.</p><p>Designed with practicality in mind, the mounting type is chassis-based which facilitates straightforward installation processes on standard setups. The curve type C ensures that the device trips instantaneously under fault conditions typical in commercial settings.</p><p>Operating efficiently across ambient temperatures from -5&#176;C to +55&#176;C makes this RCBO versatile enough for diverse environmental conditions found across Australia’s varied climate zones. The residual current sensitivity sits at a safe threshold level of 30 mA—ideal for preventing hazardous leakage currents without unnecessary tripping during normal operation.</p><p>For connectivity options: busbar connections can accommodate up to ten square millimeters; rigid wiring fits between one-to-twenty-five square millimeters; flexible wiring suits one-to-sixteen square millimeters—all contributing towards versatile application scenarios tailored around your specific needs whether upgrading old installations or setting new ones altogether!</p><p>In terms of operational characteristics—it has been developed as instantaneous meaning no delay occurs when detecting faults thereby minimizing potential damage risks associated therein whilst maintaining optimal functionality throughout usage periods expected thereof under regular circumstances encountered typically therein by users alike globally today!</p>
