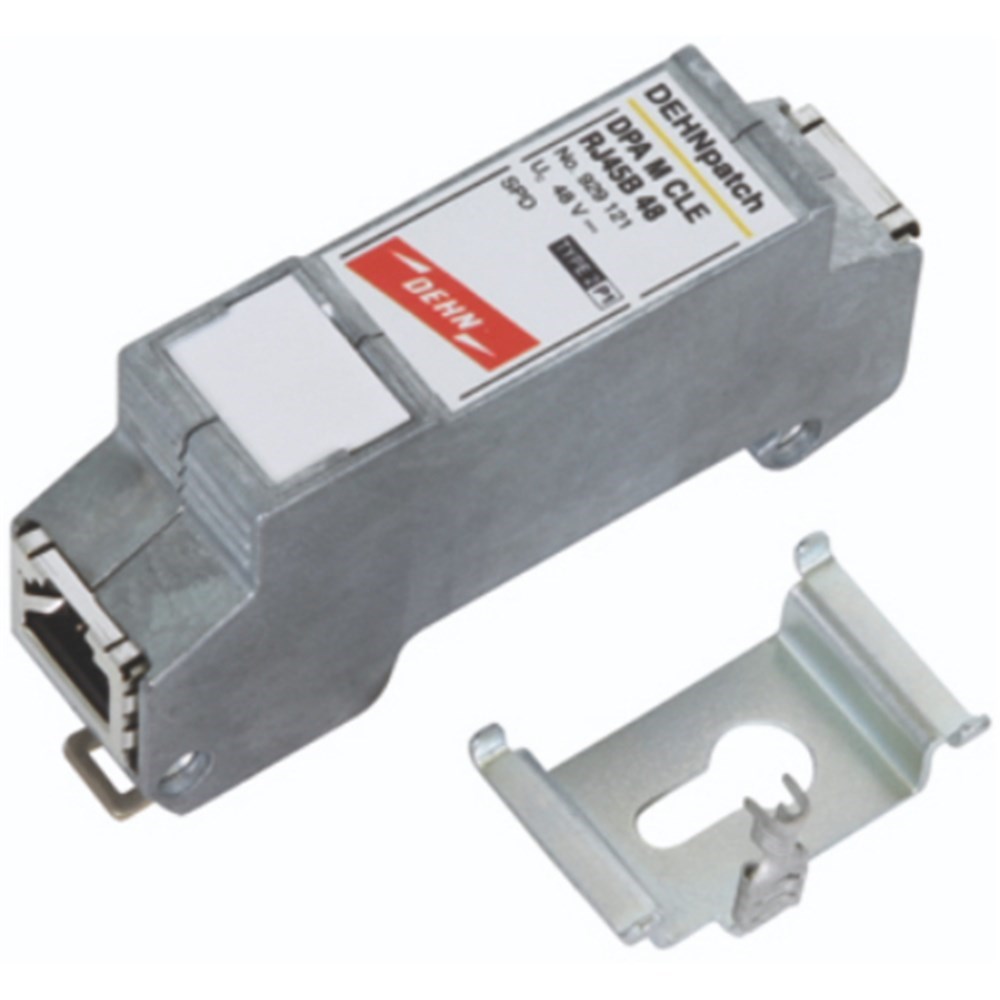

DEHN DEHNPATCH M CLE RJ45B 48 SURGE ARRESTER DPAMCLERJ45B48

Product Code: DPAMCLERJ45B48

Universal arrester for Industrial Ethernet, Power over Ethernet (IEEE 802.3 compliant up to PoE++ / 4PPoE) and similar applications in structured cabling systems according to class E up to 250 MHz. Protection of all pairs by means of powerful gas discharge tubes and one adapted filter matrix per pair. Fully shielded type with sockets for DIN rail mounting.

Technical Specifications

Module Width (mm) 19
Nominal Voltage (V) 48
Brand DEHN
Article No. 929121
Connection Type RJ45 socket
Degree of Protection IP10
Dimensions (mm) 0.06W x 0.08L x 0.04D
Enclosure Material Zinc die-cast
Lightning Impulse Current (10/350 µs) - Iimp (kA) 0.5 (Per Line)
Maximum Continuous Operating Voltage MCOV AC (V) 34
Maximum Continuous Operating Voltage MCOV DC (V) 48
Mounting Type DIN Rail
No. of Modules 1
Nominal Discharge Current (8/20µs) - In (kA) 0.15 (Line-Line)/2.5 (Line-PG)
Total Discharge Current (8/20µs) - Itotal (kA) 10
Voltage Protection Level - Up (kV) ≤ 0.18 (Line-Line)/≤ 0.5 (Line-PG)
Weight (kg) 0.12
