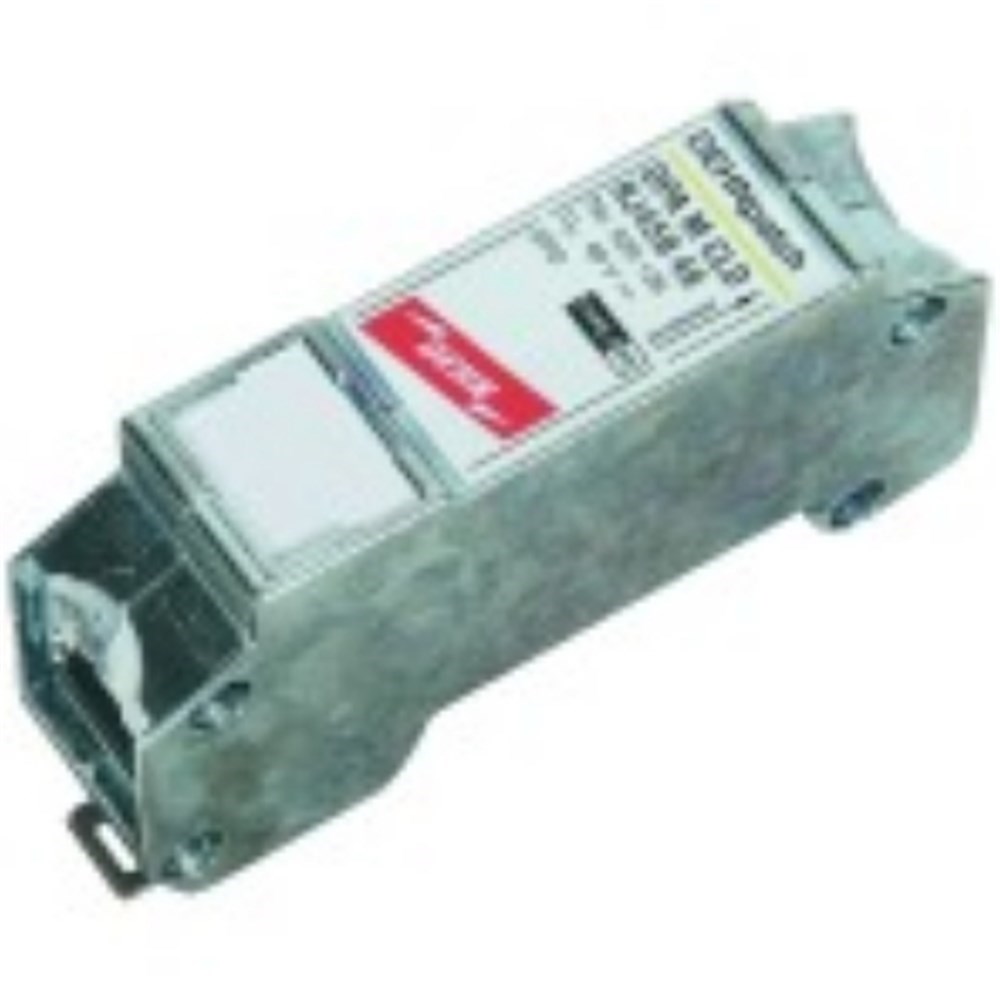

DEHN SURGE ARRESTER DEHNPATCH WITH 2 RJ45 SOCKETS DPAMCLDRJ45B48

Product Code: DPAMCLDRJ45B48

Universal arrester for Industrial Ethernet, Power over Ethernet (IEEE 802.3 compliant up to PoE++ / 4PPoE) and similar applications in structured cabling systems according to class D up to 100 MHz. Protection of all pairs by powerful gas discharge tubes. DIN rail mounted adapter type with sockets.

Technical Specifications

Module Width (mm) 19
Nominal Voltage (V) 48
Brand DEHN
Article No. 929126
Connection Type RJ45 socket
Degree of Protection IP10
Dimensions (mm) 0.06W x 0.08L x 0.04D
Enclosure Material Zinc die-cast
Lightning Impulse Current (10/350 µs) - Iimp (kA) 0.5 (Per Line)
Maximum Continuous Operating Voltage MCOV AC (V) 34
Maximum Continuous Operating Voltage MCOV DC (V) 48
Mounting Type DIN Rail
No. of Modules 1
Nominal Discharge Current (8/20µs) - In (kA) 1.25 (Line-Line)/2.5 (Line-PG)
Total Discharge Current (8/20µs) - Itotal (kA) 10
Voltage Protection Level - Up (kV) ≤ 0.7 (Line-Line)/≤ 0.7 (Line-PG)
Weight (kg) 0.1
