Breaking Capacity AC (kA)	25
Maximum Continuous Voltage AC (V)	1000
Mounting Method	DIN Rail 35mm
No. of Conductors	1
Brand	DEHN
Degree of Protection	IP20
Dimensions (mm)	83W x 98H x 27D
Maximum Discharge Current (8/20µs) - Imax (kA)	40
Nominal Discharge Current (8/20µs) - In (kA)	20
Nominal Voltage AC (V)	690
Reference No.	952938
Suitable For	Power Supply Systems
Weight (g)	229
Weight (kg)	0.207

Lightning & Surge Protection

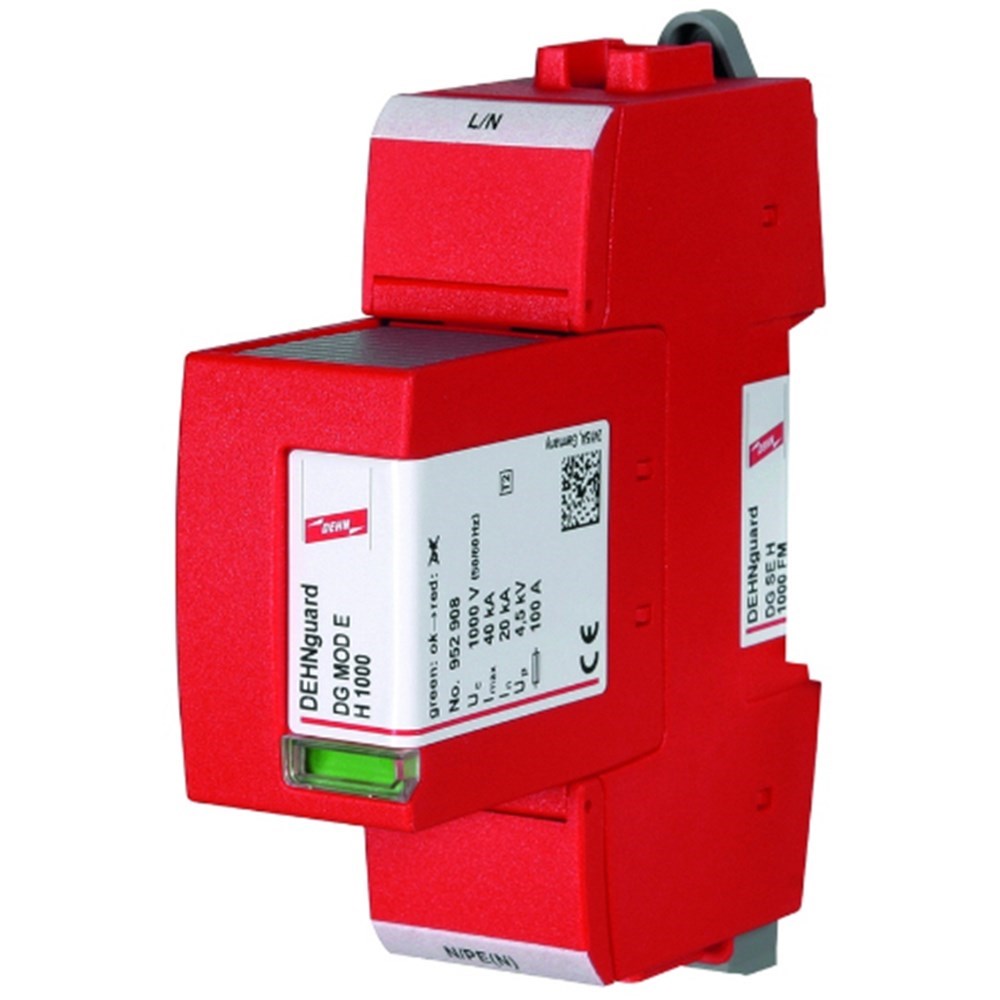

DEHN SURGE ARRESTER 1P TYPE2 40kA 8/20US2 WIRE 1000VAC WITH C/O DGSEH1000FM
