Breaking Capacity AC (kA)	25
Maximum Continuous Voltage AC (V)	440
Mounting Method	DIN Rail 35mm
No. of Conductors	1
Brand	DEHN
Degree of Protection	IP20
Dimensions (mm)	27W x 90H x 76D
Nominal Discharge Current (8/20µs) - In (kA)	12.5
Nominal Voltage AC (V)	400
Reference No.	952923
Standards and Approvals	EN 61643-11
Suitable For	Power Supply Systems
Weight (kg)	0.18

Lightning & Surge Protection

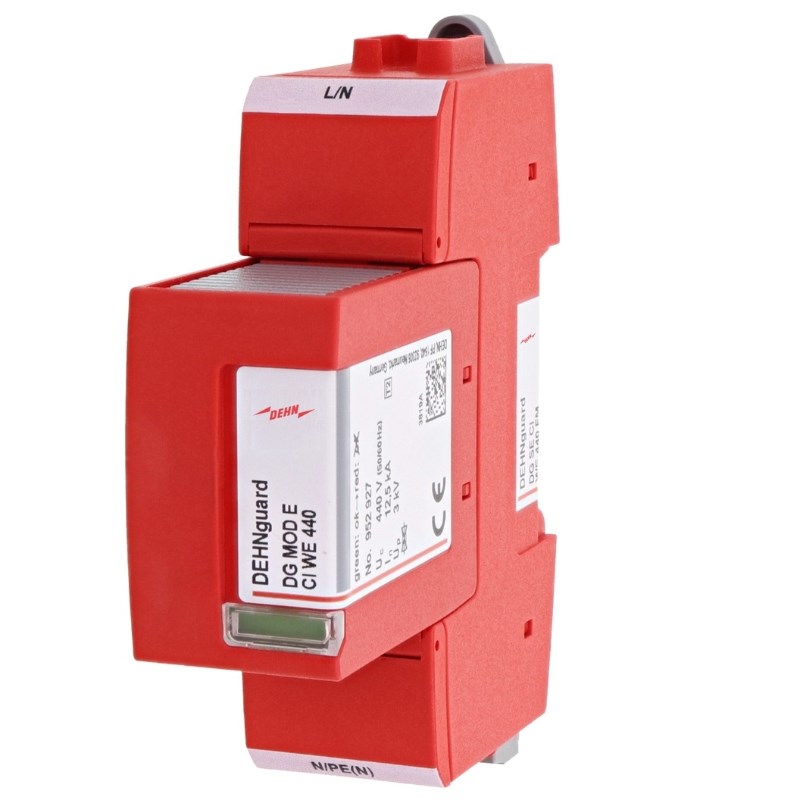

DEHN SPD 1P T2 IN 12.5kA 8/20US 7502 WIRE 440VAC C/W FUSE & C/O DGSECIWE440FM
