Brand	DEHN
Article No.	900439
Circuit Type	DB
Degree of Protection	IP20
Dimensions (mm)	0.05W x 0.11L x 0.05D
Follow Current Extinguishing Capability AC (kArms)	0.1 (N-PE)
Integral Fuse	No
Maximum Continuous Operating Voltage MCOV AC (V)	275 (L-N)/255 (N-PE)
Maximum Continuous Operating Voltage MCOV DC (V)	350
Maximum Discharge Current (8/20µs) - Imax (kA)	20 (L-N)/ 40 (N-PE)
Mounting Type	DIN Rail
No. of Modules	2
No. of Poles	4P+PE
Nominal Discharge Current (8/20µs) - In (kA)	10 (L-N)/ 10 (N-PE)
Nominal Voltage AC (V)	230
Operating State/Fault Indication	Green/Red
Response Time (ns)	≤ 25 (L-N)/≤ 100 (L/N-PE)
Short-Circuit Withstand Capability - Iscc? (kArms)	6
Signal C/O Contact	Yes
Total Discharge Current (8/20µs) - Itotal (kA)	40 (L+N-PE)
Voltage Protection Level - Up (kV)	≤ 1.5
Weight (kg)	0.13

Lightning & Surge Protection

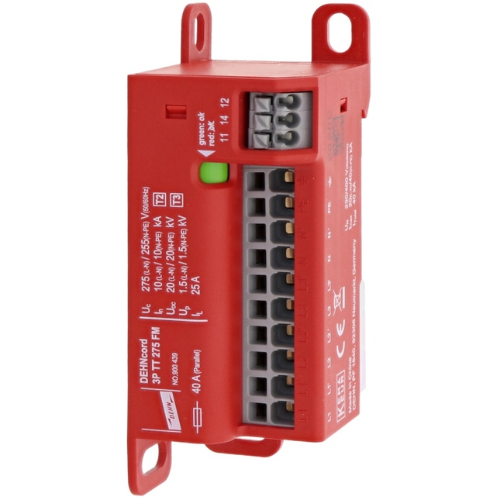

DEHN TYPE 2+3 SURGE ARRESTER DEHNCORD 3-PHASE FOR ELECTR. INST. SYSTEMS DCOR3PTT275FM
