Current Consumption (mA)	15 or less
Emitting Element	Infrared LED
Long Sensing Range	Yes
Output Operation	Switchable Light-ON/ Dark-ON
Sensing Range (mm)	800
Standard Sensing Object	Opaque, translucent or transparent object
Brand	PANASONIC
Ambient Temperature Range (°C)	–25 to +55
Cable Length (m)	2
Degree of Protection	IP67
Material	Body-PBT, Lens-Acrylic
Operating State/Fault Indication	Operation - Orange LED, Stability and Power-Green LED
Outputs	NPN open-collector transistor
Rated Supply Voltage DC (V)	12 - 24
Series	CX-400
Type	Standard, Diffuse reflective

Position Switches & Sensors

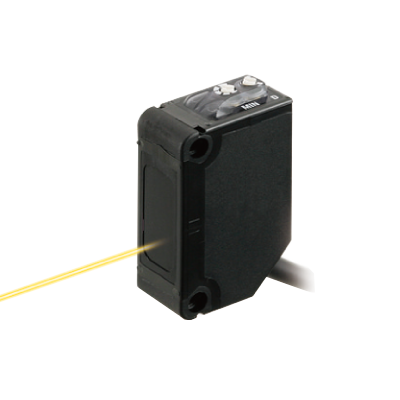

PANASONIC COMPACT PHOTOELECTRIC SENSOR, NPN CX-422-Z
