Secondary Connection	Screw connection
Apparent Power Output (VA)	2500
Cable Use	Cable and Horizontal bar
Current Limit Function	Full Scale 5
Frequency (Hz)	50 to 60Hz
No. of Inputs	Primary 1
Rated Primary Current - I?? (A)	60
Rated Secondary Current - I?? (A)	5
Accuracy	±3%
Cable Cross Section (mm²)	18
Cross Section (mm²)	20 x 10
Current Rating (A)	60A
Degree of Protection	IP30
Model	Through-feed current converter
Mounting Type	Through Primary
Operational Temperature Range (°C)	-5 to 50
Power Loss (W)	15

Current Transformers

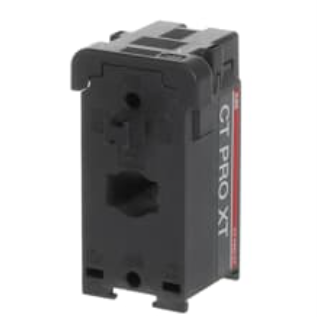

ABB CT PRO XT 60A/5A CTPROXT60
