Product Code: CTPROXT50

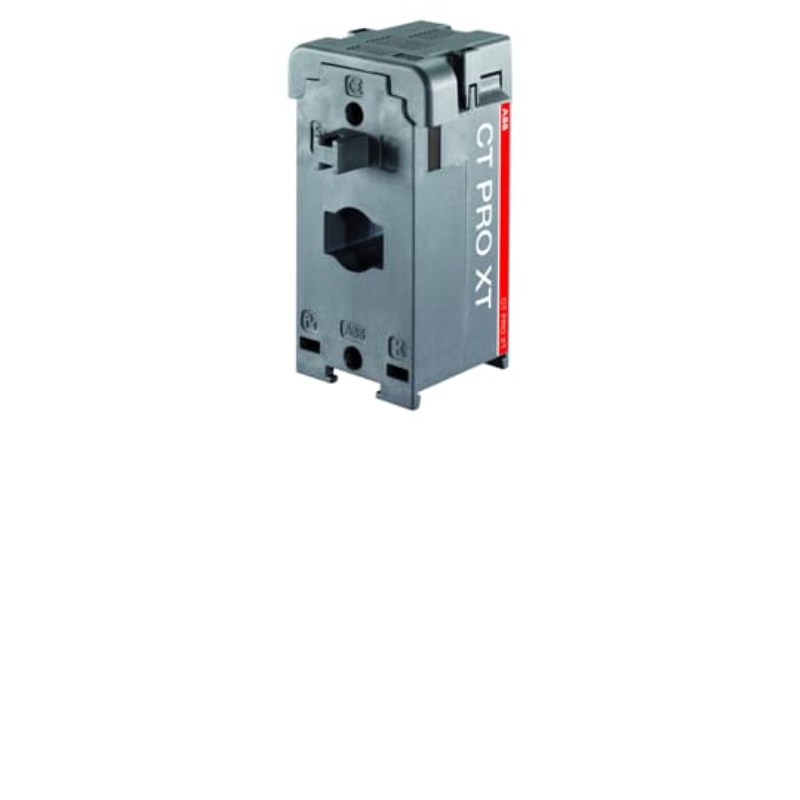

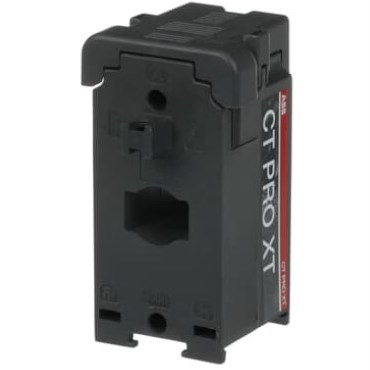

Solid-core current transformer with current ratio 50/5 and accuarcy class 3 at 2VA. Test voltage 3kV at 50Hz/1min and insulation class E (120 °C). Equipped with a sealable terminals cover for secondary terminals. Housing material: self-extinguishing thermoplastic resin V0. Dimensions of CTPROXT type are 96Hx45Wx69Dmm with cable diameter opening of 18mm and bar through 20x10mm. Can be adapted to all common mounting systems: primary cable, primary busbar, DIN rail and wall-mounting.

Apparent Power Output (VA)	160
Cable Use	Cable and Horizontal bar
CT Ratio	50/5
Current Limit Function	Full Scale 5
Brand	ABB
Rated Primary Current - I?? (A)	50
Rated Secondary Current - I?? (A)	0.63
Accuracy	±3%
Busbar Cross Section (mm²)	20X10
Cable Cross Section (mm²)	18
Degree of Protection	IP30
Mounting Type	Through primary
Operational Temperature Range (°C)	-5 to +50
Power Loss (W)	15
Rated Frequency (Hz)	50 / 60

Current Transformers

ABB CTPROXT50 SOLID-CORE CURRENT TRANSFORMER 50/5 RATIO, CLASS 3 2VA CTPROXT

Product Code: CTPROXT50

Technical Specifications
