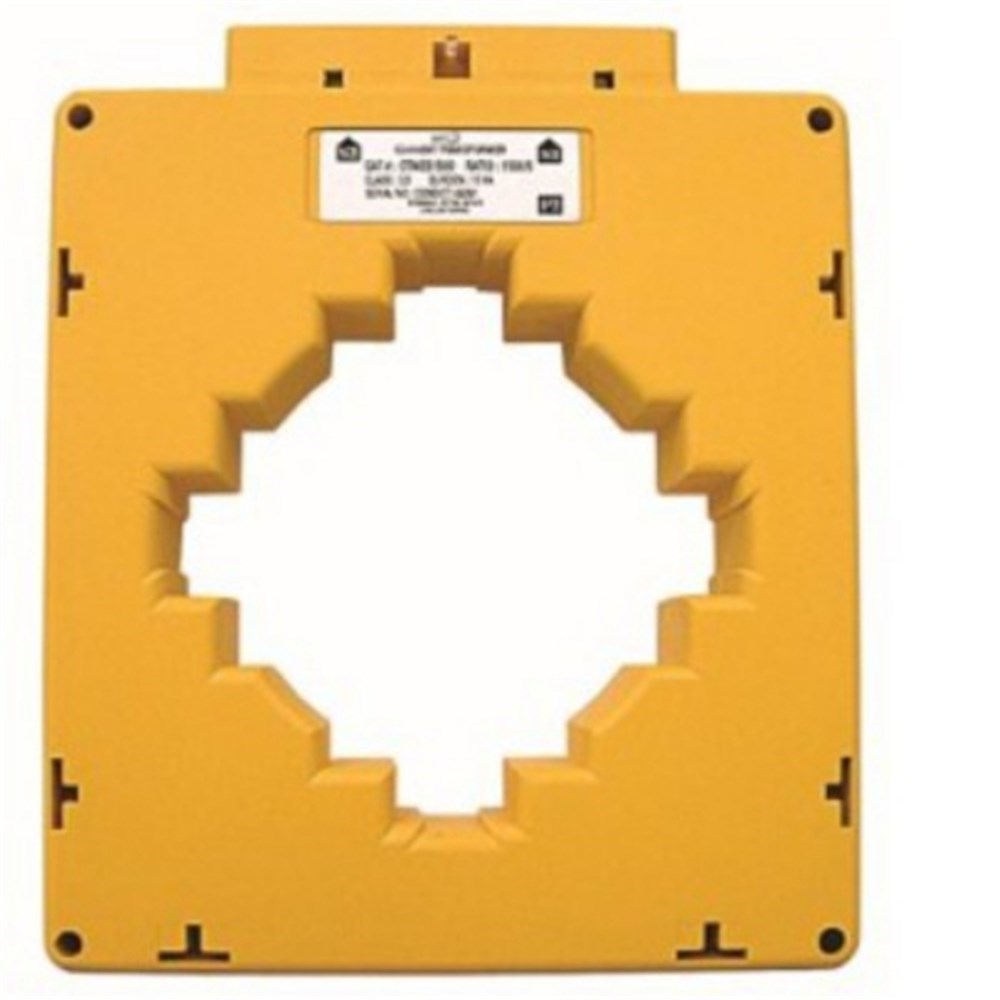

IPD CTME62000 CTME-6 SOLID-CORE CURRENT TRANSFORMER 2000/5 RATIO, CLASS 0.5 15VA

The CTME-6 solid-core current transformer is designed for accurate measurement of electrical currents. It has a current ratio of 2000/5 and an accuracy class of 0.5 at 15VA. The transformer features a single turn primary winding and is built with high impact flame retardant materials, ensuring durability. For convenience and safety, the CTME-6 comes with a clear sealable terminal cover as standard, along with knockouts in the terminal shrouds. This allows for easy installation and maintenance. The operating temperature range of the CTME-6 is -20°C to +70°C, making it suitable for various environments. It has an insulation class B (80°C), providing reliable insulation performance. In terms of dimensions, the CTME-6 measures 220Hx192Wx42Dmm. It has a cable diameter opening of 126.5mm and a bar through size of 58x126.5mm. Installation options include fixed screw mounting or DIN rail mounting. The package includes mounting brackets and a busbar fixing device for easy installation. Overall, the CTME-6 solid-core current transformer offers accurate current measurement, robust design, and convenient installation options for various applications in electrical systems.
