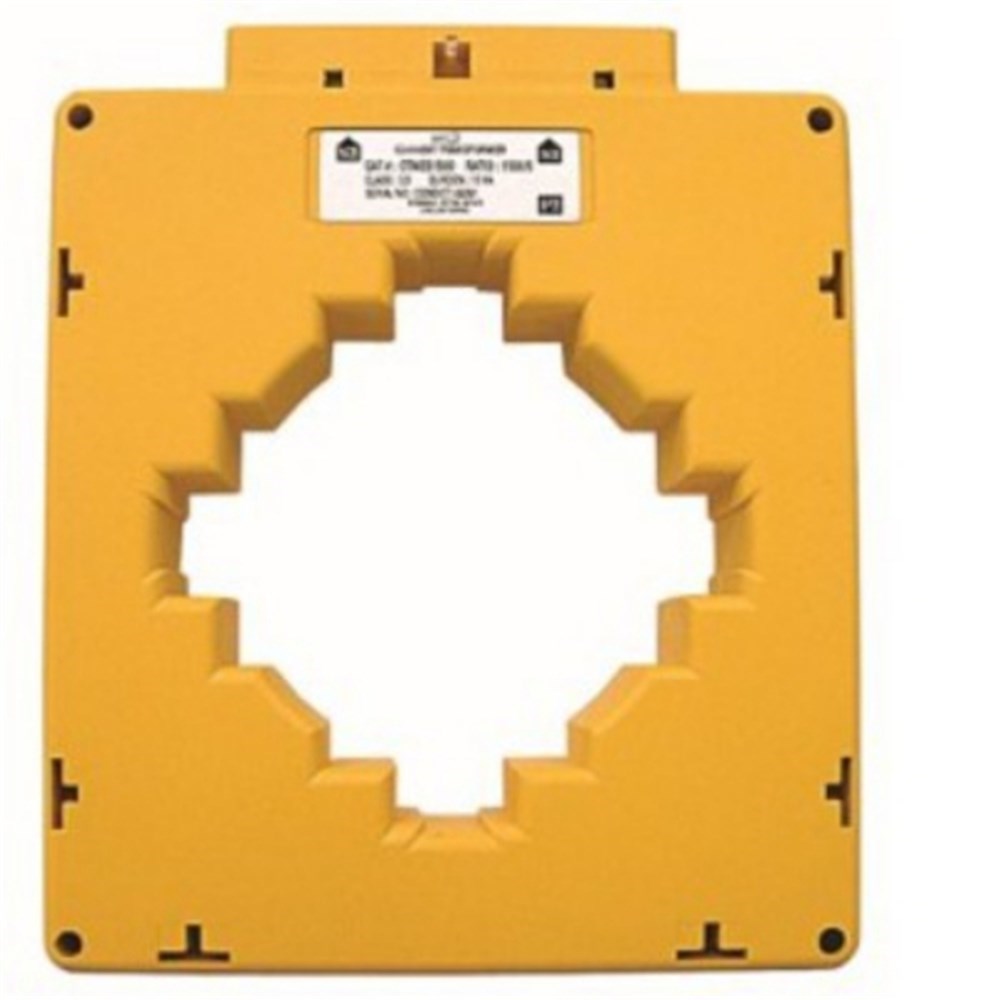

IPD CTME51600 CTME-5 SOLID-CORE CURRENT TRANSFORMER 1600/5 RATIO, CLASS 0.5 15VA

The CTME-5 solid-core current transformer is designed for accurate measurement of electrical currents. It has a current ratio of 1600/5 and an accuracy class of 0.5 at 15VA. The transformer features a single turn primary winding and is built with high impact flame retardant materials, ensuring durability. It comes with a clear sealable terminal cover and knockouts in the terminal shrouds for easy installation. The operating temperature range is -20°C to +70°C, making it suitable for various environments. The insulation class is B (80°C). The dimensions of the CTME-5 type are 175Hx148Wx42Dmm, with a cable diameter opening of 82mm and a bar through size of 20.8x102mm. It can be mounted using fixed screws or DIN rail mounting, and includes mounting brackets and a busbar fixing device for convenience.
