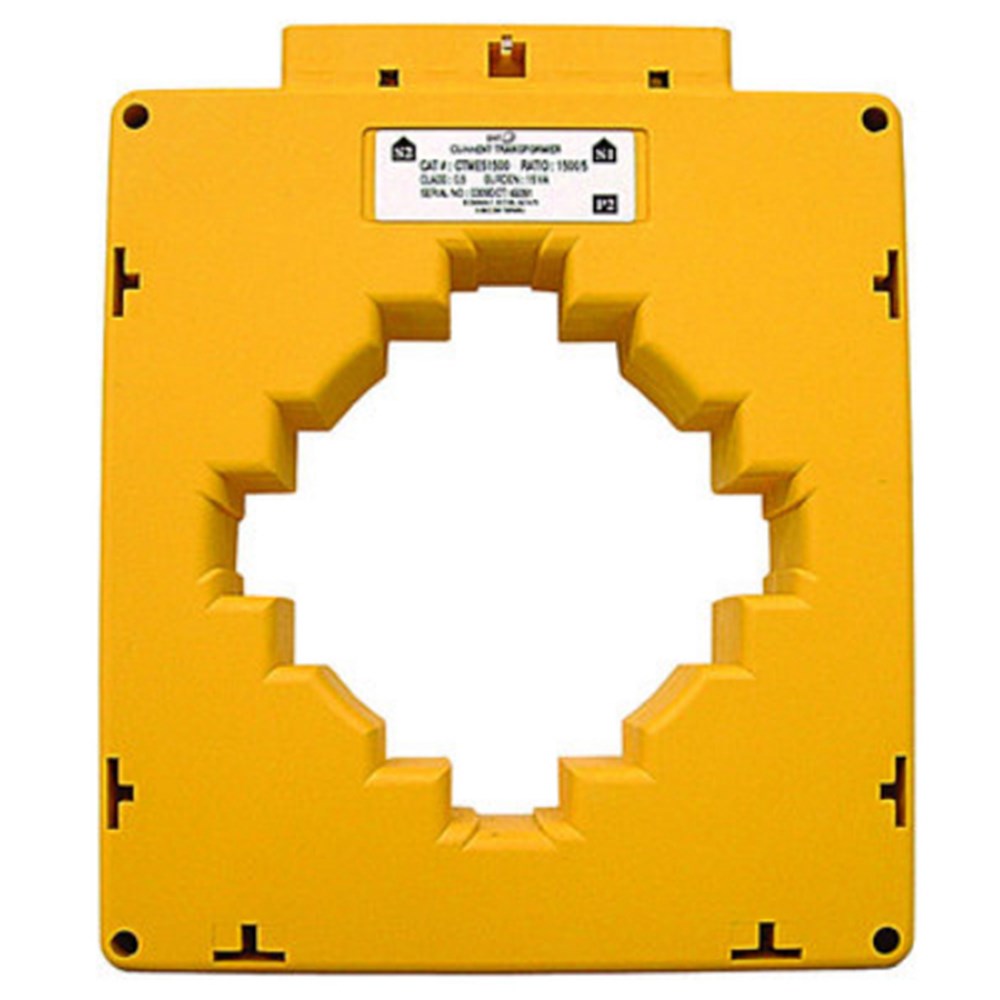

IPD CTME51200 CTME-5 SOLID-CORE CURRENT TRANSFORMER 1200/5 RATIO, CLASS 0.5 15VA

The CTME-5 solid-core current transformer is designed for accurate measurement of electrical currents. It has a current ratio of 1200/5 and an accuracy class of 0.5 at 15VA. The transformer features a single turn primary winding and a robust design made from high impact flame retardant materials. For added convenience, the CTME-5 comes with a clear sealable terminal cover as standard and knockouts in the terminal shrouds. It can operate within a temperature range of -20°C to +70°C and has an insulation class of B (80°C). In terms of dimensions, the CTME-5 measures 175Hx148Wx42Dmm and has a cable diameter opening of 82mm. It also has a bar through size of 20.8x102mm. Installation options include fixed screw mounting or DIN rail mounting, with mounting brackets and a busbar fixing device included. Overall, the CTME-5 is a reliable and versatile current transformer suitable for various electrical applications.
