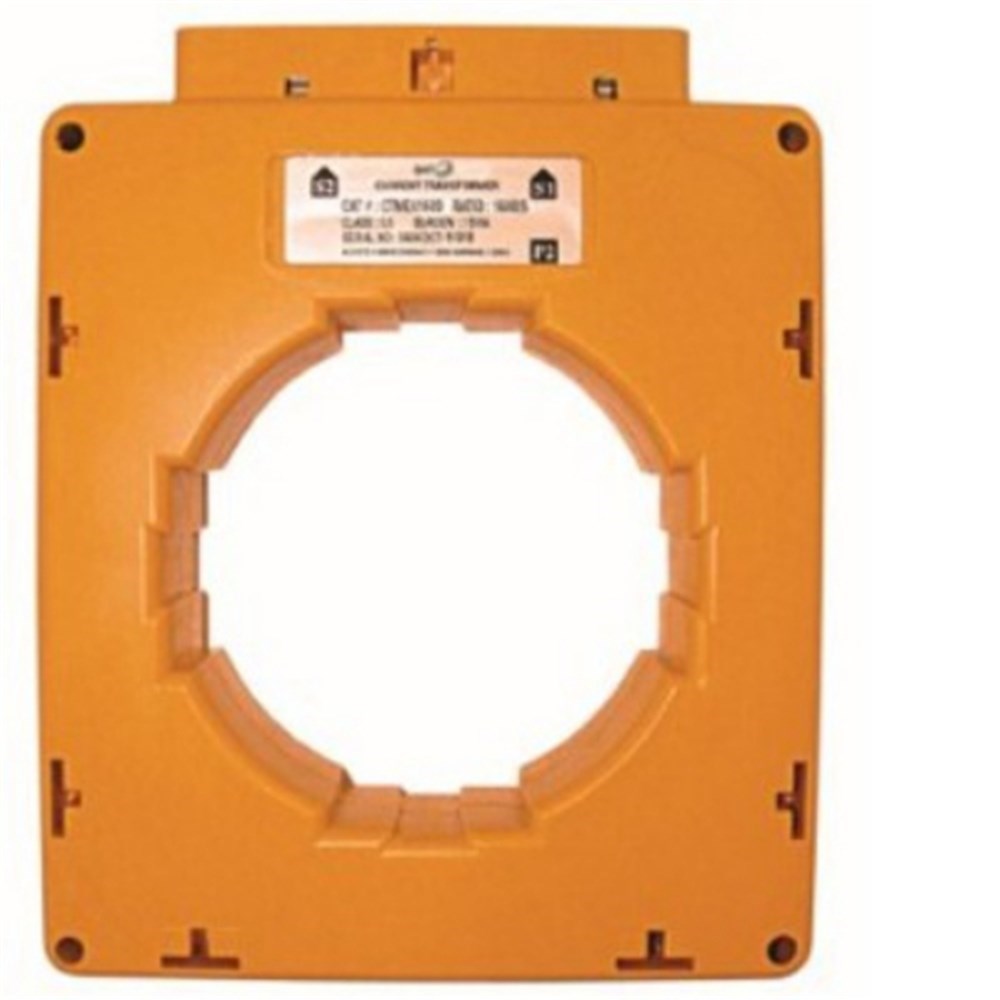

IPD CTME4600 CTME-4 SOLID-CORE CURRENT TRANSFORMER 600/5 RATIO, CLASS 1 10VA

The CTME-4 solid-core current transformer is designed for accurate measurement of electrical currents. It has a current ratio of 600/5 and an accuracy class of 1 at 10VA. The transformer features a single turn primary winding and a robust design made from high impact flame retardant materials. It comes with a clear sealable terminal cover as standard and knockouts in the terminal shrouds for easy installation. The CTME-4 operates within a temperature range of -20°C to +70°C and has an insulation class of B (80°C). Its dimensions are 157Hx129Wx42Dmm, with a cable diameter opening of 82mm. The transformer can be mounted using fixed screws or DIN rail mounting, and it includes mounting brackets and a busbar fixing device for convenience.
