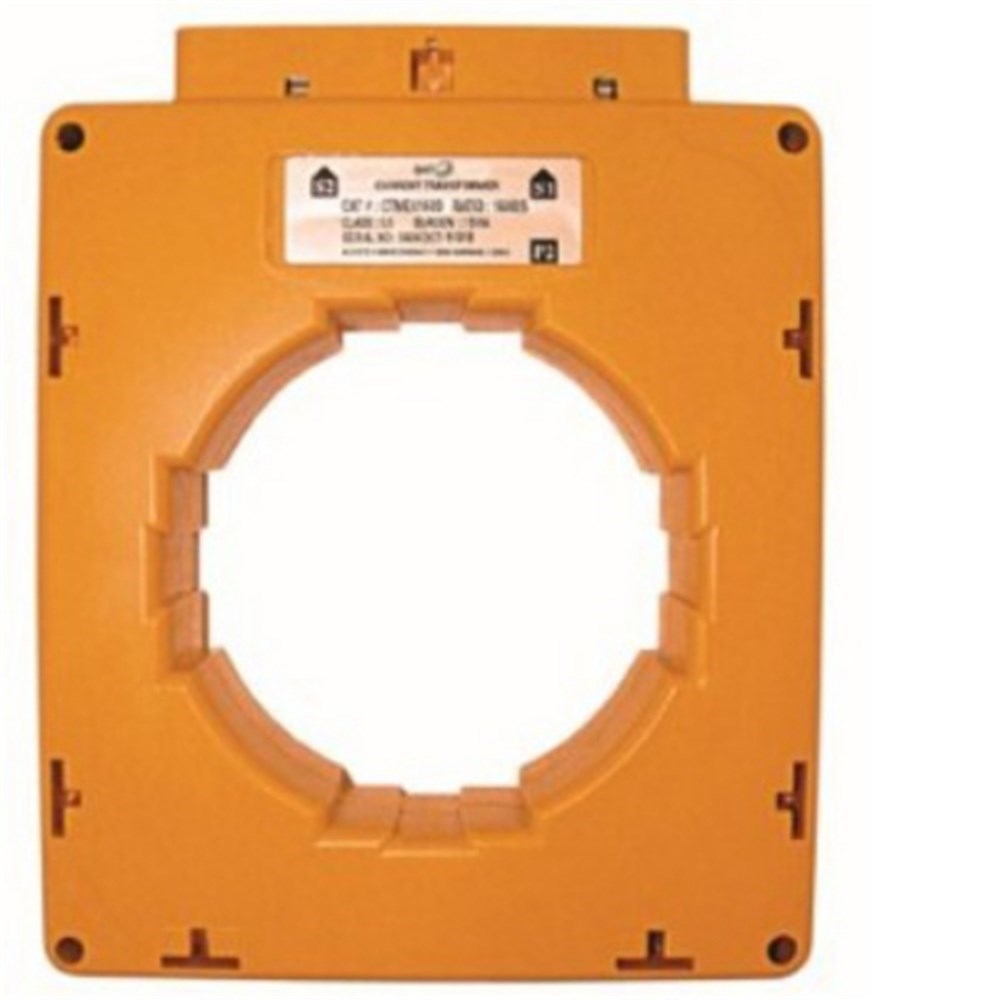

IPD CTME42000 CTME-4 SOLID-CORE CURRENT TRANSFORMER 2000/5 RATIO, CLASS 0.5 15VA

The CTME-4 solid-core current transformer is designed for accurate measurement of electrical currents. It has a current ratio of 2000/5 and an accuracy class of 0.5 at 15VA. The transformer features a single turn primary winding and a robust design made from high impact flame retardant materials. For convenience and safety, the CTME-4 comes with a clear sealable terminal cover as standard, along with knockouts in the terminal shrouds. This ensures easy installation and protection of the terminals. The operating temperature range for the CTME-4 is -20°C to +70°C, making it suitable for various environments. It has an insulation class B (80°C), providing reliable insulation performance. In terms of dimensions, the CTME-4 measures 157Hx129Wx42Dmm and has a cable diameter opening of 82mm. It can be mounted using fixed screws or DIN rail mounting, and includes mounting brackets and a busbar fixing device for easy installation. Overall, the CTME-4 solid-core current transformer offers accurate current measurement, durability, and convenient installation options for various applications.
