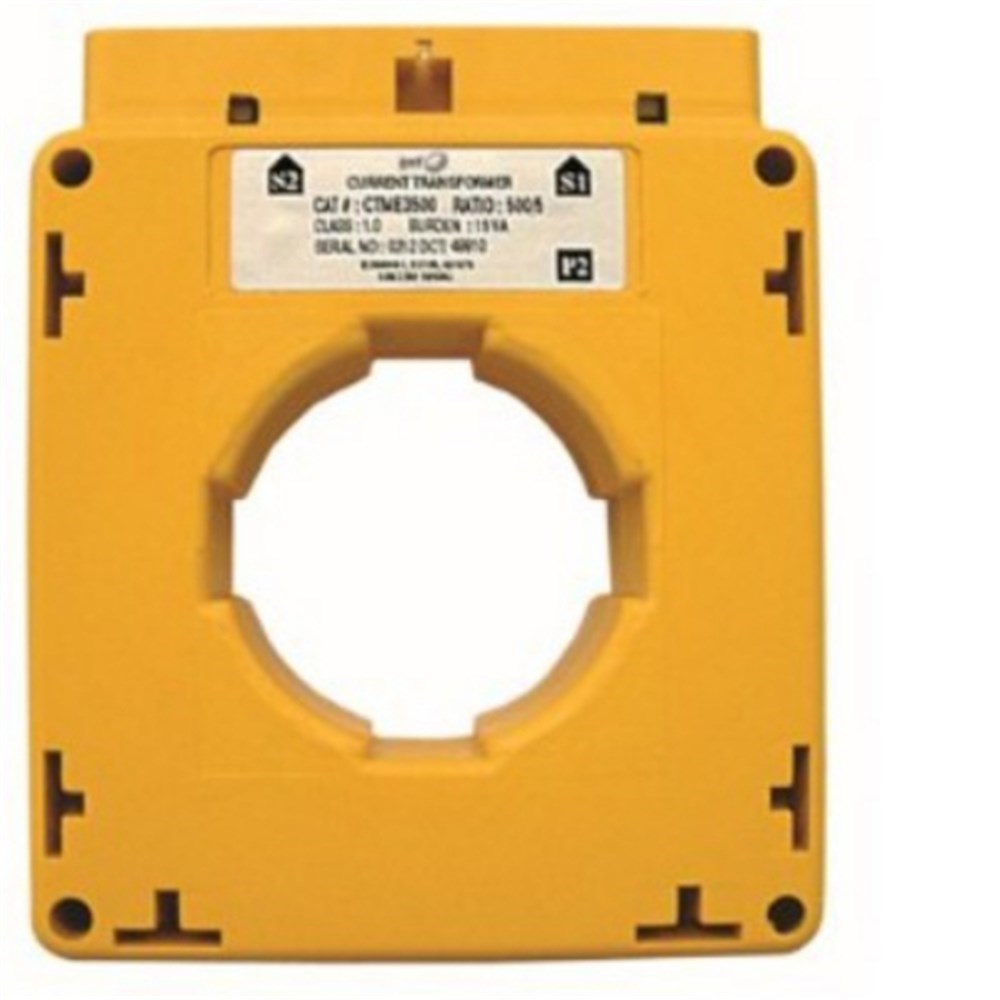

IPD CTME3300 CTME-3 SOLID-CORE CURRENT TRANSFORMER 300/5 RATIO, CLASS 1 7.5VA

The CTME-3 solid-core current transformer is designed for accurate measurement of electrical currents. It has a current ratio of 300/5 and an accuracy class of 1 at 7.5VA. The transformer features a single turn primary winding and a robust design made from high impact flame retardant materials. It comes with a clear sealable terminal cover and knockouts in the terminal shrouds. The operating temperature range is -20°C to +70°C, and it has an insulation class of B (80°C). The dimensions of the CTME-3 type are 115Hx97Wx42Dmm, with a cable diameter opening of 48mm. It can be mounted using fixed screws or DIN rail mounting, and includes mounting brackets and a busbar fixing device.
