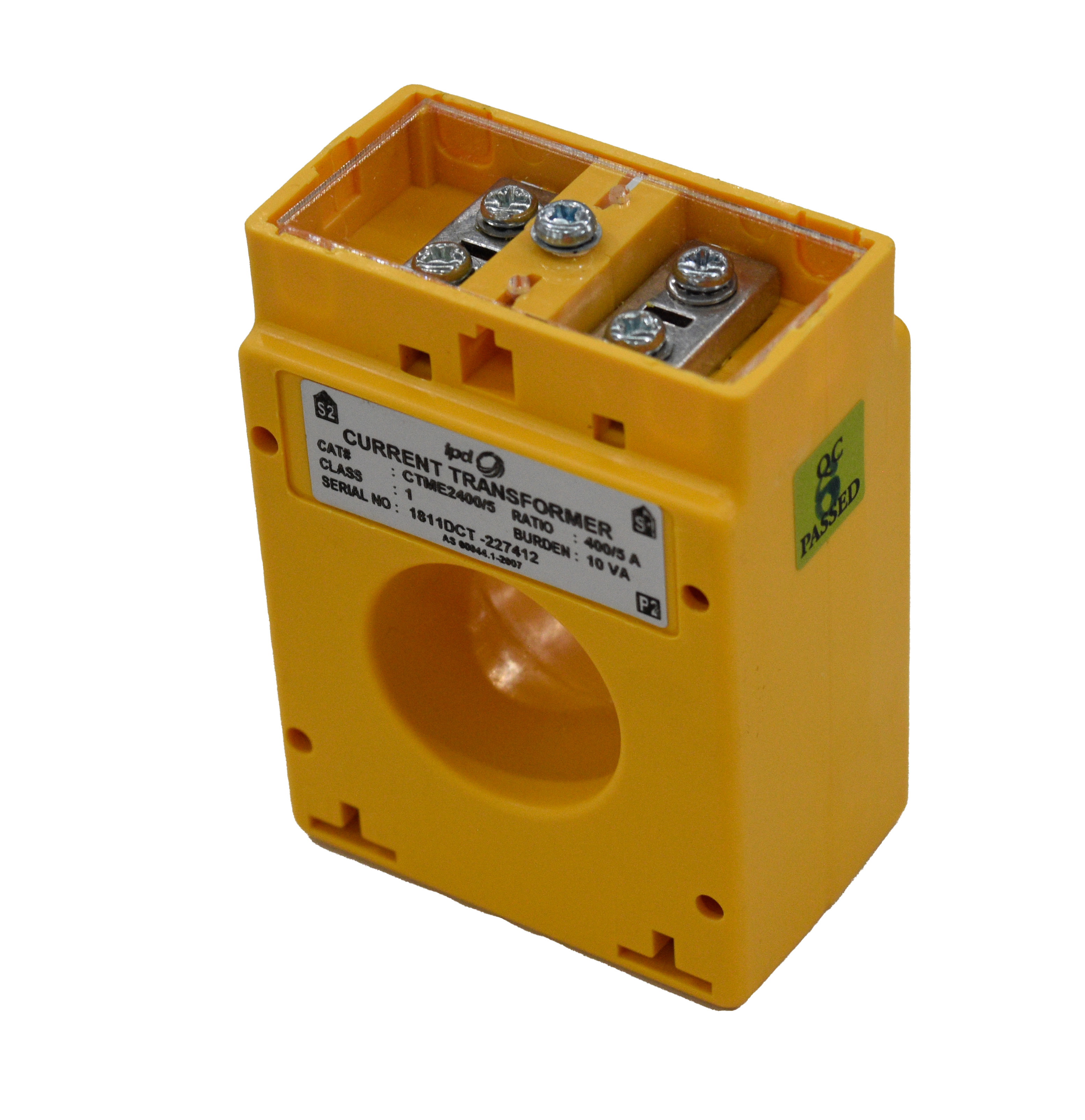

IPD CTME2400 CTME-2 SOLID-CORE CURRENT TRANSFORMER 400/5 RATIO, CLASS 1 10VA

The CTME-2 solid-core current transformer is designed for accurate measurement of electrical currents. It has a current ratio of 400/5 and an accuracy class of 1 at 10VA. The transformer features a single turn primary winding and a robust design made from high impact flame retardant materials. It comes with a clear sealable terminal cover and knockouts in the terminal shrouds. The CTME-2 operates within a temperature range of -20°C to +70°C and has an insulation class of B (80°C). Its dimensions are 88Hx65Wx42Dmm, with a cable diameter opening of 33mm. The transformer can be mounted using fixed screws or DIN rail mounting, and it includes mounting brackets and a busbar fixing device for easy installation.
