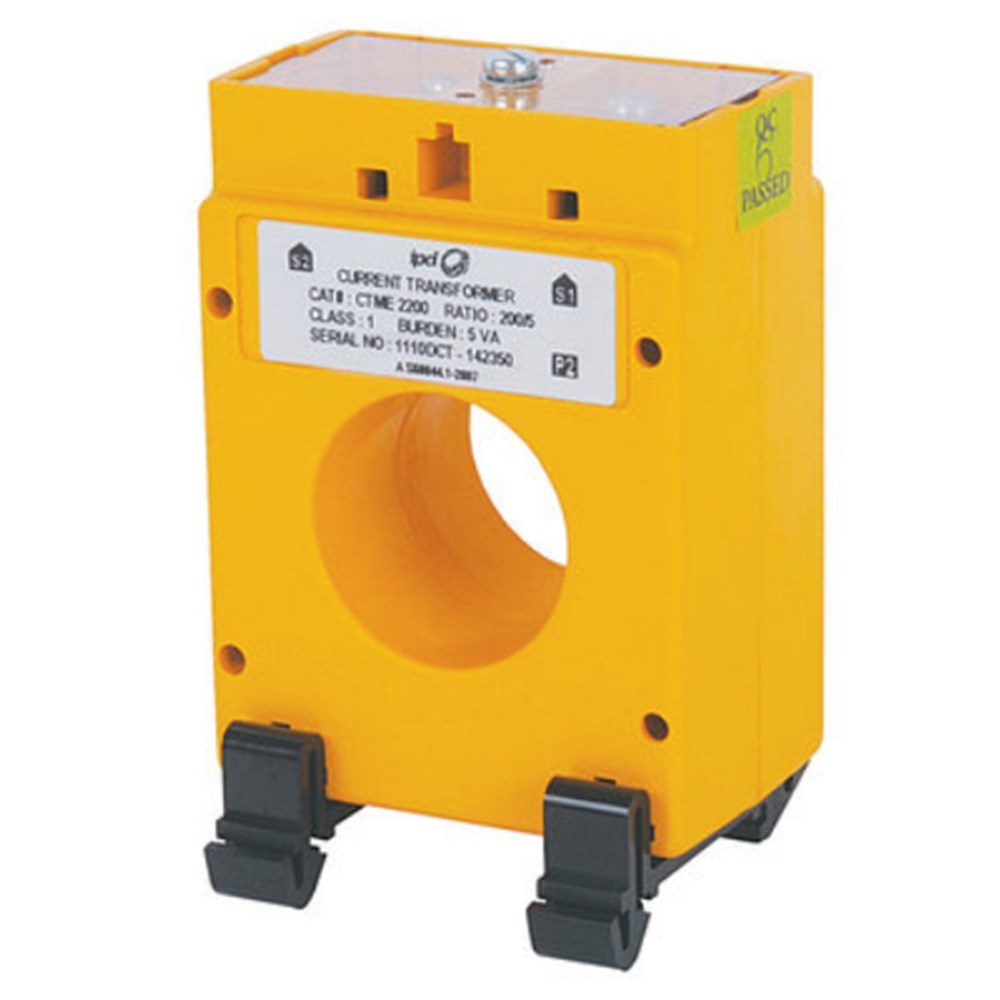

IPD CTME2200 CTME-2 SOLID-CORE CURRENT TRANSFORMER 200/5 RATIO, CLASS 1 5VA

The CTME-2 is a solid-core current transformer with a current ratio of 200/5 and accuracy class 1 at 5VA. It features a single turn primary winding and a robust design made from high impact flame retardant materials. The transformer comes with a clear sealable terminal cover as standard and knockouts in the terminal shrouds. It has an operating temperature range of -20°C to +70°C and insulation class B (80°C). The dimensions of the CTME-2 type are 88Hx65Wx42Dmm with a cable diameter opening of 33mm. It can be mounted using fixed screws or DIN rail mounting, and includes mounting brackets and a busbar fixing device.
