Product Code: CT8-V/1500

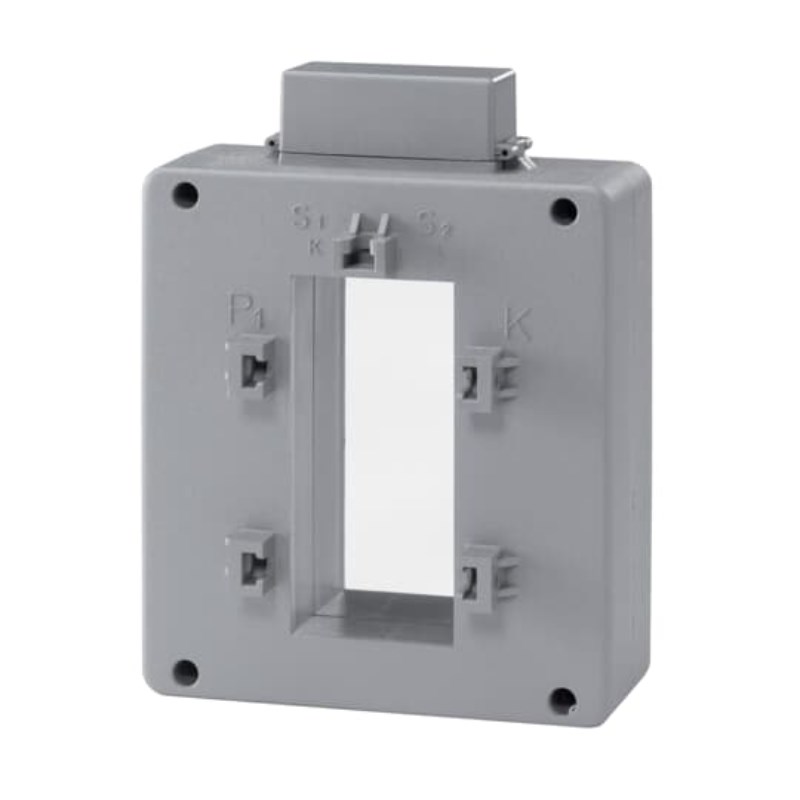

Solid-core current transformer with current ratio 1500/5 and accuarcy class 0.5 at 10VA. Test voltage 3kV at 50Hz/1min and insulation class E (120 °C). Equipped with a sealable terminals cover for secondary terminals. Housing material: self-extinguishing thermoplastic resin V0. Dimensions of CT8-V type are 141Hx109Wx41Dmm with cable diameter opening of 2x35mm and vertical bar through 80x30mm and 3x80x5mm. Can be adapted to all common mounting systems: primary cable, primary busbar, DIN rail and wall-mounting.

Brand	ABB
Apparent Power Output (VA)	30
Cable Use	Cable and Vertical bar
CT Ratio	1500/5
Current Limit Function	Full Scale 5
Net Weight (kg)	0.734
Pulse Output Rate	123
Rated Primary Current - I?? (A)	1500
Rated Secondary Current - I?? (A)	5
Accuracy	±0,5%
Busbar Cross Section (mm²)	3X80X5
Cable Cross Section (mm²)	2X35
Degree of Protection	IP30
Dimensions (mm)	109 X 26.5 X 41
Mounting Type	Through Primary
Operational Temperature Range (°C)	-5 to +50
Power Loss (W)	16
Rated Frequency (Hz)	50 / 60
