Product Code: CT8/2500

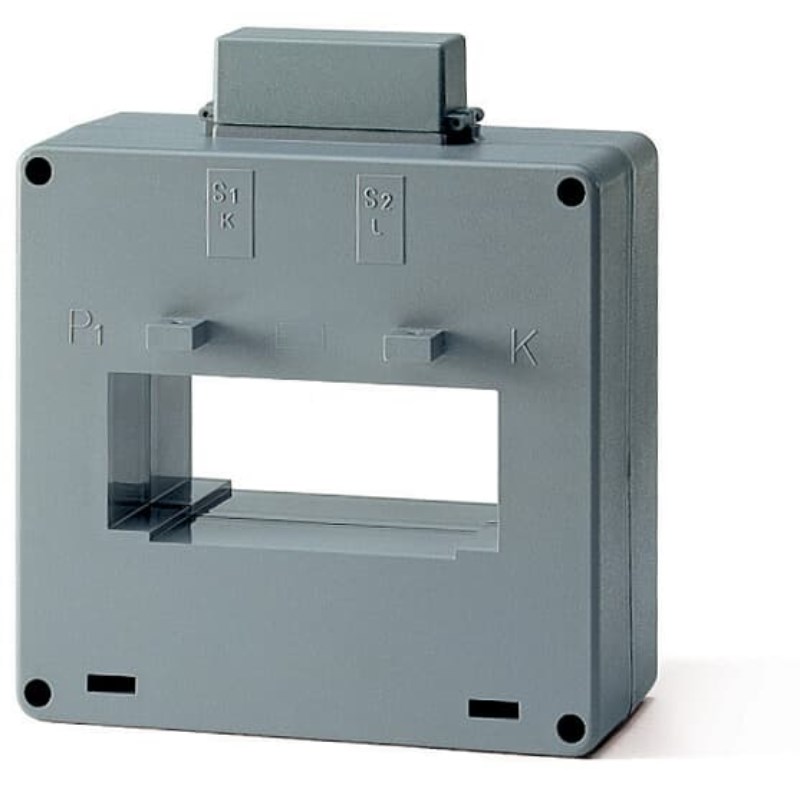

Solid-core current transformer with current ratio 2500/5 and accuarcy class 0.5 at 20VA. Test voltage 3kV at 50Hz/1min and insulation class E (120 °C). Equipped with a sealable terminals cover for secondary terminals. Housing material: self-extinguishing thermoplastic resin V0. Dimensions of CT8 type are 142Hx125Wx61.5Dmm with cable diameter opening of 2x30mm and bar through 80x30mm. Can be adapted to all common mounting systems: primary cable, primary busbar, DIN rail and wall-mounting.

Apparent Power Output (VA)	1
Cable Use	Cable and Horizontal bar
CT Ratio	2500/5
Current Limit Function	Full Scale 5
Brand	ABB
Rated Primary Current - I?? (A)	2500
Rated Secondary Current - I?? (A)	5
Accuracy	±0.5%
Busbar Cross Section (mm²)	80 X 30
Cable Cross Section (mm²)	2 X 30
Degree of Protection	IP30
Mounting Type	Through primary
Operational Temperature Range (°C)	-5 to +50
Power Loss (W)	18
Rated Frequency (Hz)	50 / 60

Current Transformers

ABB CT8/2500 SOLID-CORE CURRENT TRANSFORMER 2500/5 RATIO, CLASS 0.5 20VA CT8
