Product Code: CT6/400

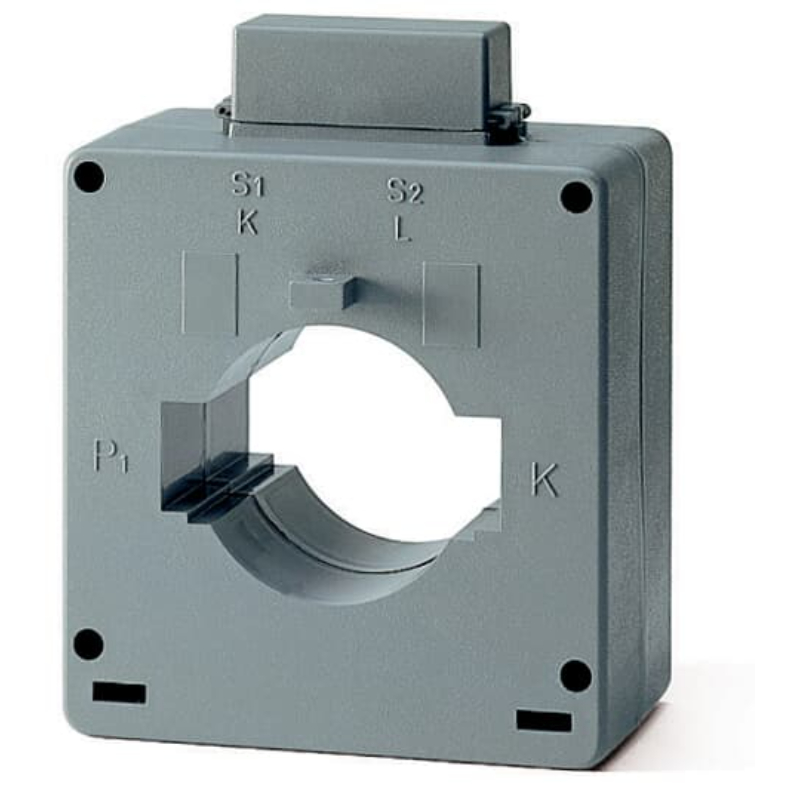

Solid-core current transformer with current ratio 400/5 and accuarcy class 0.5 at 6VA. Test voltage 3kV at 50Hz/1min and insulation class E (120 °C). Equipped with a sealable terminals cover for secondary terminals. Housing material: self-extinguishing thermoplastic resin V0. Dimensions of CT6 type are 121Hx105Wx61Dmm with cable diameter opening of 50mm and bar through 60x20mm. Can be adapted to all common mounting systems: primary cable, primary busbar, DIN rail and wall-mounting.

Brand	ABB
Apparent Power Output (VA)	5
Cable Use	Cable and Horizontal bar
CT Ratio	400/5
Current Limit Function	Full Scale 5
Net Weight (kg)	0.59
Pulse Output Rate	81
Rated Primary Current - I?? (A)	400
Rated Secondary Current - I?? (A)	5
Accuracy	±0,5%
Busbar Cross Section (mm²)	60 X 20
Cable Cross Section (mm²)	50
Degree of Protection	IP30
Dimensions (mm)	105 X 26.5 X 61
Mounting Type	Through Primary
Operational Temperature Range (°C)	-5 to +50
Power Loss (W)	16
Rated Frequency (Hz)	50 / 60
