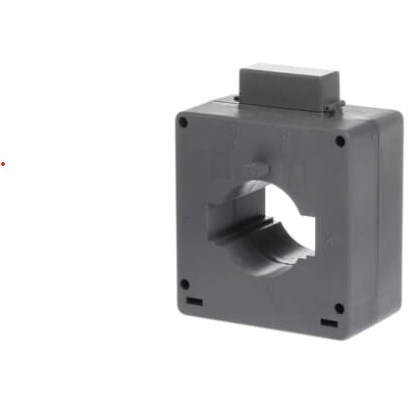

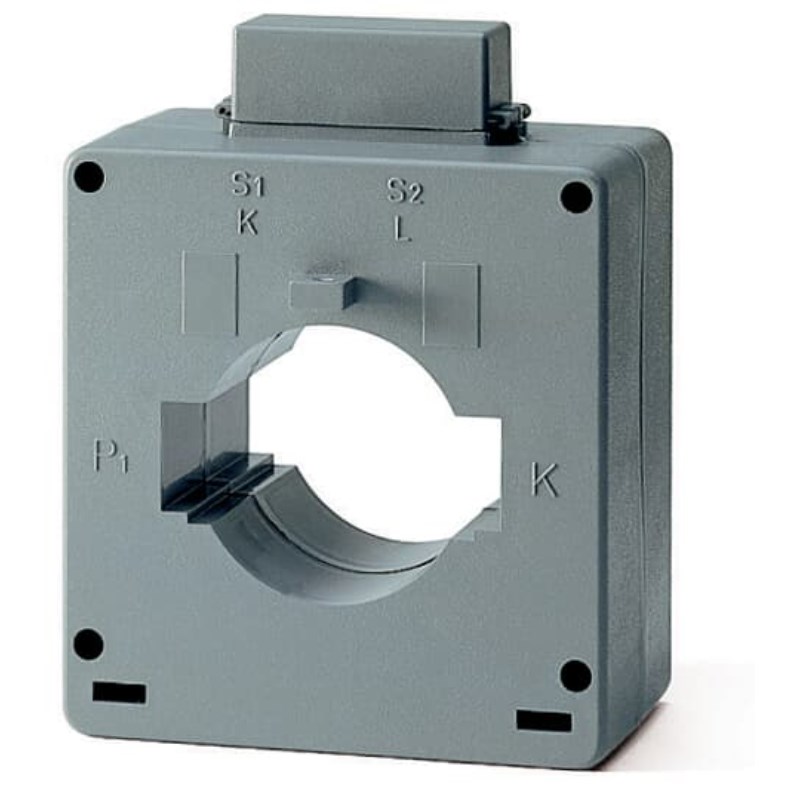

ABB CURRENT TRANSFORMER CT6/2000

Solid-core current transformer with a current ratio of 2000/5 and accuracy class of 0.5 at 30VA. It has been tested at a voltage of 3kV and frequency of 50Hz for 1 minute, meeting insulation class E (120 °C) standards. The transformer is equipped with a sealable terminals cover for the secondary terminals. Its housing material is made of self-extinguishing thermoplastic resin V0. The CT6 type has dimensions of 121Hx105Wx61Dmm, with a cable diameter opening of 50mm and a bar through size of 60x20mm. It can be easily adapted to various mounting systems such as primary cable, primary busbar, DIN rail, and wall-mounting.
