Product Code: CT6/1200

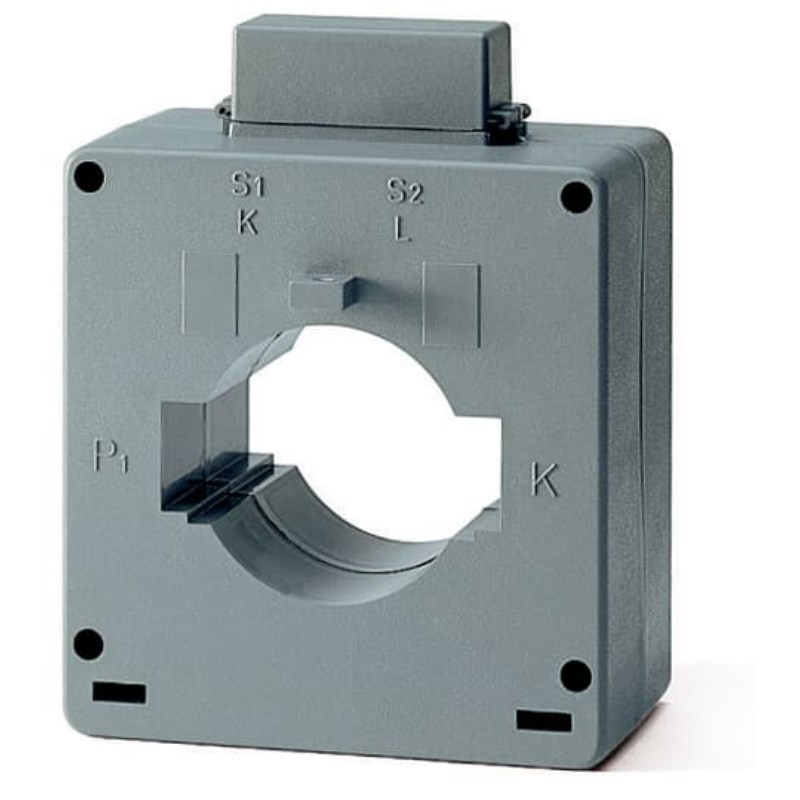

Solid-core current transformer with a current ratio of 1200/5 and accuracy class of 0.5 at 20VA. It has a test voltage of 3kV at 50Hz/1min and an insulation class of E (120 °C). The transformer is equipped with a sealable terminals cover for the secondary terminals. The housing material is made of self-extinguishing thermoplastic resin V0. The dimensions of the CT6 type are 121Hx105Wx61Dmm, with a cable diameter opening of 50mm and a bar through size of 60x20mm. It can be adapted to all common mounting systems, including primary cable, primary busbar, DIN rail, and wall-mounting.

Cable Use	Cable and Horizontal bar
CT Ratio	1200/5
Current Limit Function	Full Scale 5
Brand	ABB
Rated Primary Current - I?? (A)	1200
Rated Secondary Current - I?? (A)	5
Accuracy	±0.5%
Busbar Cross Section (mm²)	60 X 20
Cable Cross Section (mm²)	50
Degree of Protection	IP30
Mounting Type	Through primary
Operational Temperature Range (°C)	-5 to +50
Power Loss (W)	16
Rated Frequency (Hz)	50 / 60
