Product Code: CT120/800

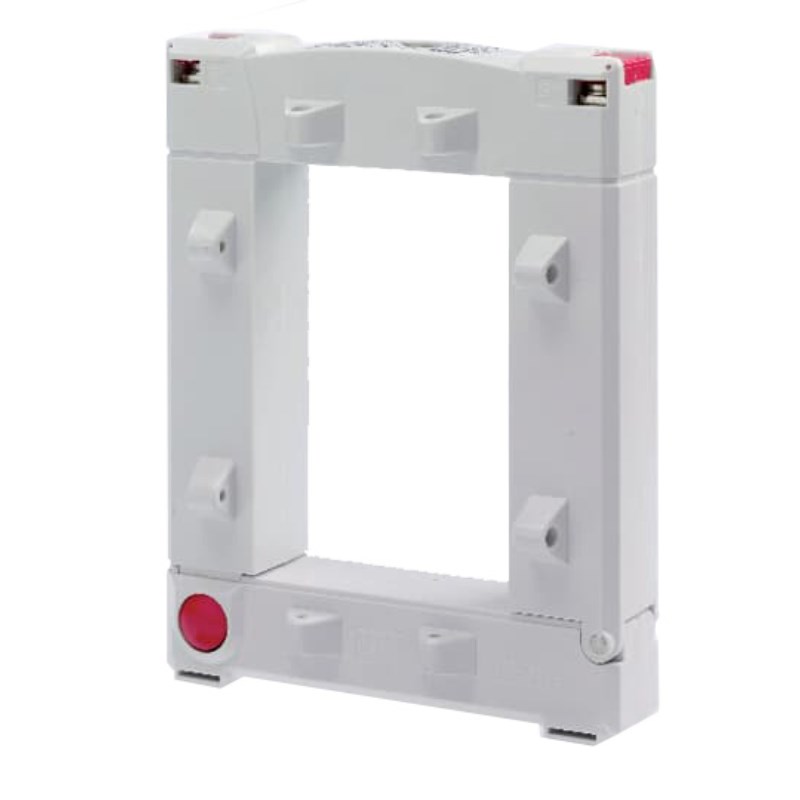

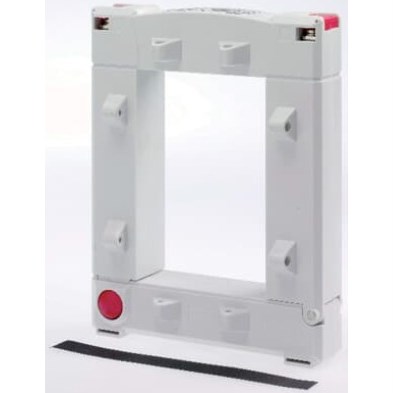

Split-core current transformer with current ratio 800/5 and accuarcy class 0.5 at 3VA. Test voltage 3kV at 50Hz/1min and insulation class E (120 °C). Equipped with a sealable terminals cover for secondary terminals. Housing material: self-extinguishing thermoplastic resin V0. Dimensions of CT120 type are 198Hx155Wx34Dmm with vertical bar through opening 4x120x10mm. Can be adapted to all common mounting systems: primary cable, primary busbar, DIN rail and wall-mounting.

Apparent Power Output (VA)	1.5
Cable Use	Vertical bar
CT Ratio	800/5
Current Limit Function	Full Scale 5
Power Loss (VA)	10.3
Brand	ABB
Rated Primary Current - I?? (A)	800
Rated Secondary Current - I?? (A)	5
Accuracy	±0.5%
Busbar Cross Section (mm²)	4 X 120 X 10
Degree of Protection	IP20
Mounting Type	Split core through primary
Operational Temperature Range (°C)	-25 to +50
Rated Frequency (Hz)	50 / 60

Current Transformers

ABB CT120/800 SPLIT-CORE CURRENT TRANSFORMER 800/5 RATIO, CLASS 0.5 3VA CT120

Product Code: CT120/800

Technical Specifications
