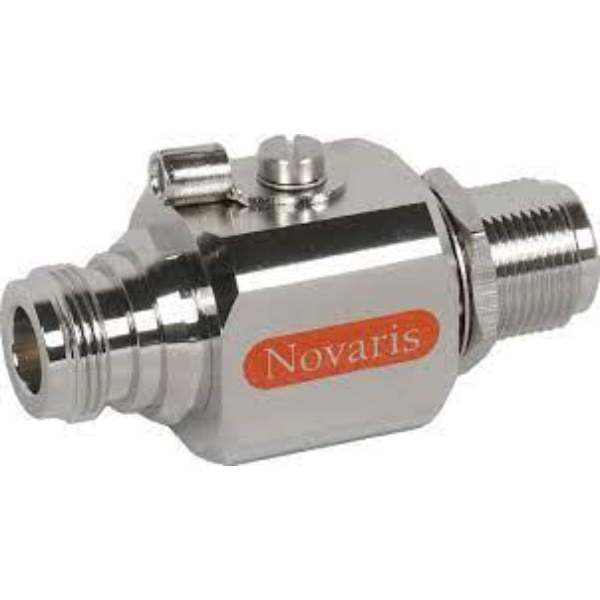

NOVARIS GAS DISCHARGE SURGE PROTECTOR 20kA 3GHz CS-FF-90-3-M

Product Code: CS-FF-90-3-M

Gas discharge surge protector with a sparkover voltage of 90 VDC and M/F connector orientation. It has a maximum discharge current of 20 kA at 8/20 us. The maximum working frequency is 3 GHz. The L-L voltage protection level at 5 kV for 10/700 us is less than 650 V. It comes with a 90-degree mounting bracket and has an IP65 rating.

Technical Specifications

Connector Orientation F/F
Maximum Working Frequency (GHz) 3
Sparkover Voltage DC (V) 90
Voltage Protection at 5kV (10/700µs) - Up (kV) <0.65
Brand NOVARIS
Connector Type SMA
Dimensions (mm) 60L x 25H
Maximum Discharge Current (8/20µs) - Imax (kA) 20
Mounting Type 90° Mounting Bracket
