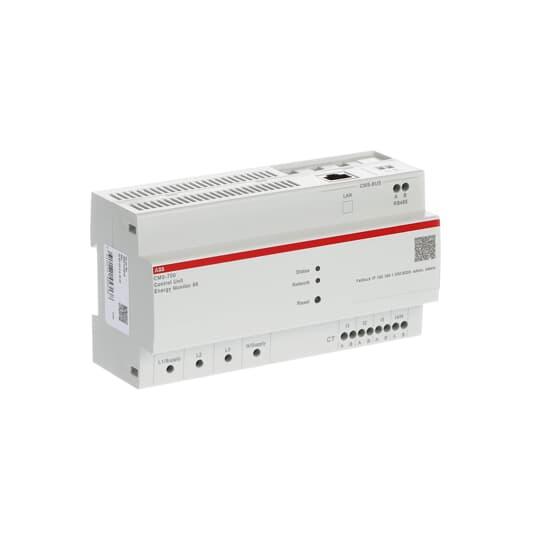

ABB CMS700 CONTROL UNIT FOR COMMUNICATION & MEASURING WITH UPTO 96 SENSORS

The CMS700 control unit is designed for branch monitoring and can support up to 96 sensors for measuring current, voltage, energy, and power. It operates with a supply voltage range of 80-277VAC and has a power input ranging from 5-40W, depending on the number of sensors connected. The CMS700 is equipped with various communication protocols including Modbus RTU, Modbus TCP/IP, SNMP, and interfaces such as LAN and RS485. This enables remote monitoring of the system. Additionally, it features a built-in web server that provides easy access to measured data and system parameters. The control unit can be conveniently mounted using a 35mm DIN rail. It has an operating temperature range of -25 to 60 degrees Celsius and compact dimensions of 87Hx161.5Wx64.9Dmm.
