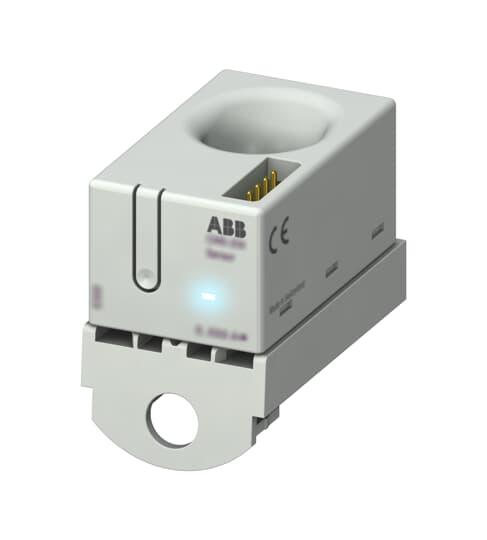

ABB CMS202S8 SOLID-CORE CURRENT SENSOR 25mm FOR S800 DEVICES, MEASURING RANGE 0.1-40A

The Solid-core current sensor for S800 devices with cage terminals has a current measuring range of 0.1-40A. It has a current accuracy class of 0.5 and can handle peak values of distorted wave-forms up to 6. The sensor is designed to operate at a rated voltage of 690VAC/1500VDC, with a frequency of 50Hz and an operating temperature range of -25 to 70°C. The CMS sensors are capable of monitoring and measuring all types of current - alternating (AC), direct (DC), or mixed (TRMS) currents. They can even measure harmonic components in the signal curve. The maximum diameter of the cable that can be used with this sensor is 15mm. The dimensions of the sensor are 38.5Hx26.5Wx43Dmm.
