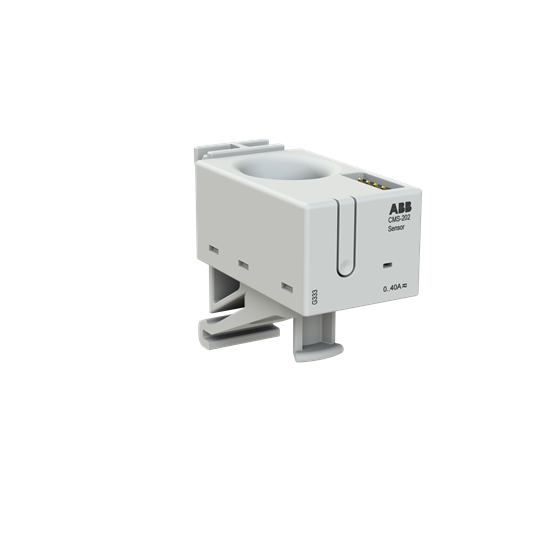

ABB CMS202DR SOLID-CORE CURRENT SENSOR 25mm FOR DIN RAIL MOUNTING, MEASURING RANGE 0.1-40A

The solid-core current sensor is designed for DIN rail mounting and has a current measuring range of 0.1-40A. It has a current accuracy class of 0.5, with a peak value of the distorted wave-form at 6. The sensor can handle a rated operational voltage of 690VAC/1500VDC and operates at a frequency of 50Hz. The temperature range for operation is -25 to 70°C. The CMS sensors are capable of monitoring and measuring all types of current - alternating (AC), direct (DC), or mixed (TRMS) currents. They can even measure harmonic components in the signal curve. The maximum diameter of the cable that can be used with the sensor is 15mm. The dimensions of the sensor are 43.2Hx25.4Wx43Dmm.
