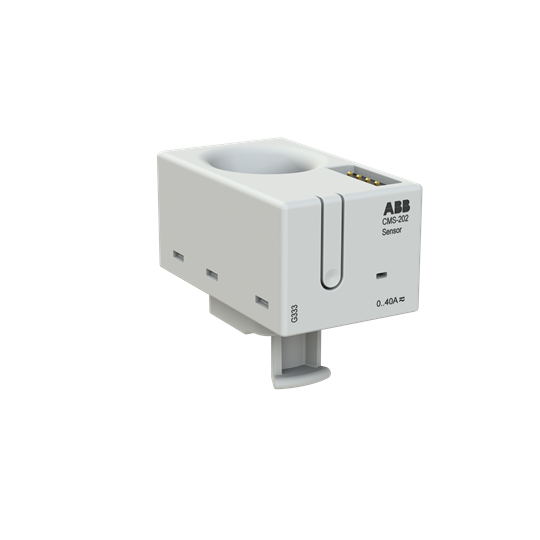

ABB CMS202CA SOLID-CORE CURRENT SENSOR 25mm FOR CABLE TIE MOUNTING, MEASURING RANGE 0.1-40A

Introducing our solid-core current sensor for cable tie mounting. This sensor has a current measuring range of 0.1-40A and a current accuracy class of 0.5. It can handle distorted wave-forms with a peak value of 6. With a rated operational voltage of 690VAC/1500VDC and a frequency of 50Hz, this sensor is suitable for various applications. It can operate in temperatures ranging from -25 to 70°C. Our CMS sensors are capable of monitoring and measuring all types of current - alternating (AC), direct (DC), or mixed (TRMS) currents. They can even measure harmonic components in the signal curve. The maximum diameter of the cable that can be used with this sensor is 15mm. The dimensions of the sensor are 35.7Hx25.4Wx43Dmm, making it compact and easy to install. Choose our solid-core current sensor for accurate and reliable current measurement in your applications.
