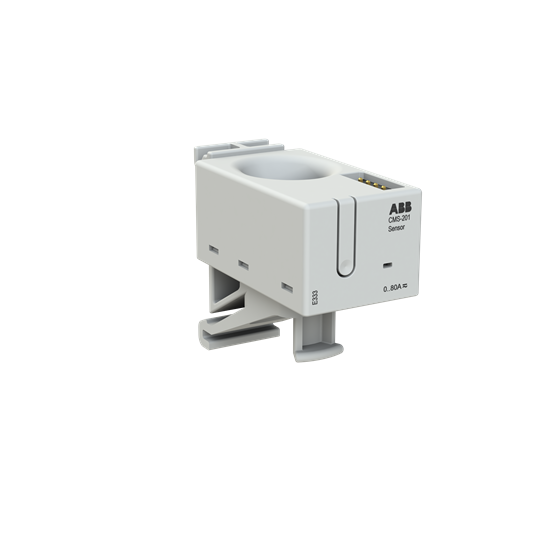

ABB CMS201DR SOLID-CORE CURRENT SENSOR 25mm FOR DIN RAIL MOUNTING, MEASURING RANGE 0.1-80A

The solid-core current sensor is designed for DIN rail mounting and has a current measuring range of 0.1-80A. It has a current accuracy class of 0.5, with a peak value of the distorted wave-form at 3. The sensor can handle a rated operational voltage of 690VAC/1500VDC, with a frequency of 50Hz. It operates within a temperature range of -25 to 70°C. The CMS sensors are capable of monitoring and measuring all types of current - alternating (AC), direct (DC), or mixed (TRMS) currents. They can even measure harmonic components in the signal curve. The maximum diameter of the cable that can be used with the sensor is 15mm. The dimensions of the sensor are 43.2Hx25.4Wx43Dmm.
